- Standard flow calibration is in water @ 70°F with lead wires up. Calibrated on increasing flow.
- Temperature effect on flow settings: water calibration, slight change; oil varies with viscosity.
- Set point accuracy will change slightly in other than calibrated position.
- Optional aluminum housings with SST trim are stocked. Consult factory.
- Optional mounting holes available. Consult factory.
- Also available: leads in different lengths, cable, terminated ends, etc. Consult factory.
- Relays for higher loads are available. See accessories section for details
- High-temperature units available to 400°F. Consult factory.
- Standard flow settings are calibrated in water. Other set points in water or oil are available. Consult factory.
- Other wetted materials: Hysol Epoxy
- All SST piston for either brass or SST housing, eliminating hysol epoxy. Consult factory.
- Calibration: Flow stands are calibrated to the National Bureau of Standards and Thomas Products Ltd. recalibration schedule.
-
Weight : 1 lbs

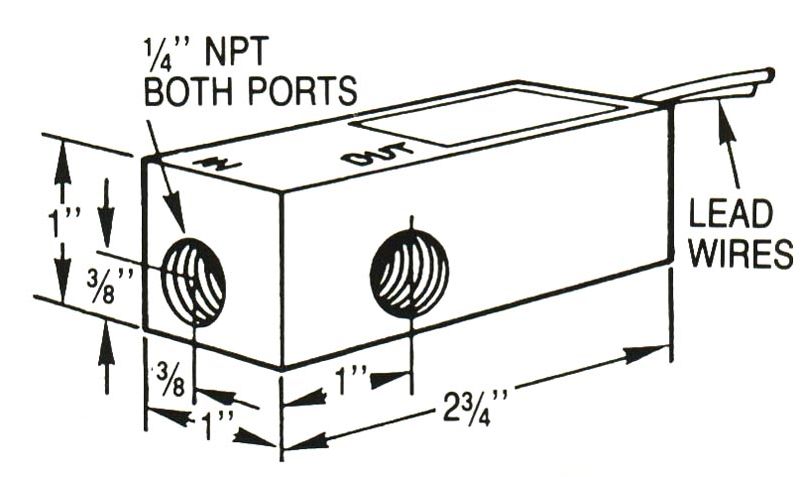

Dimensions : 8 × 5 × 3 in

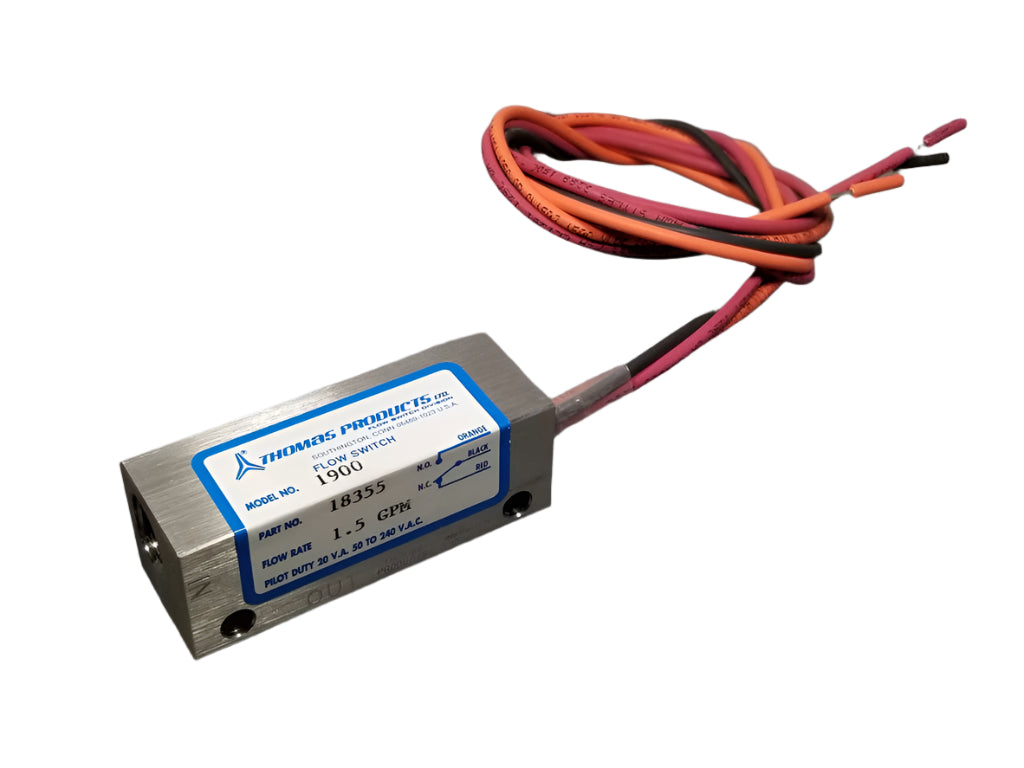

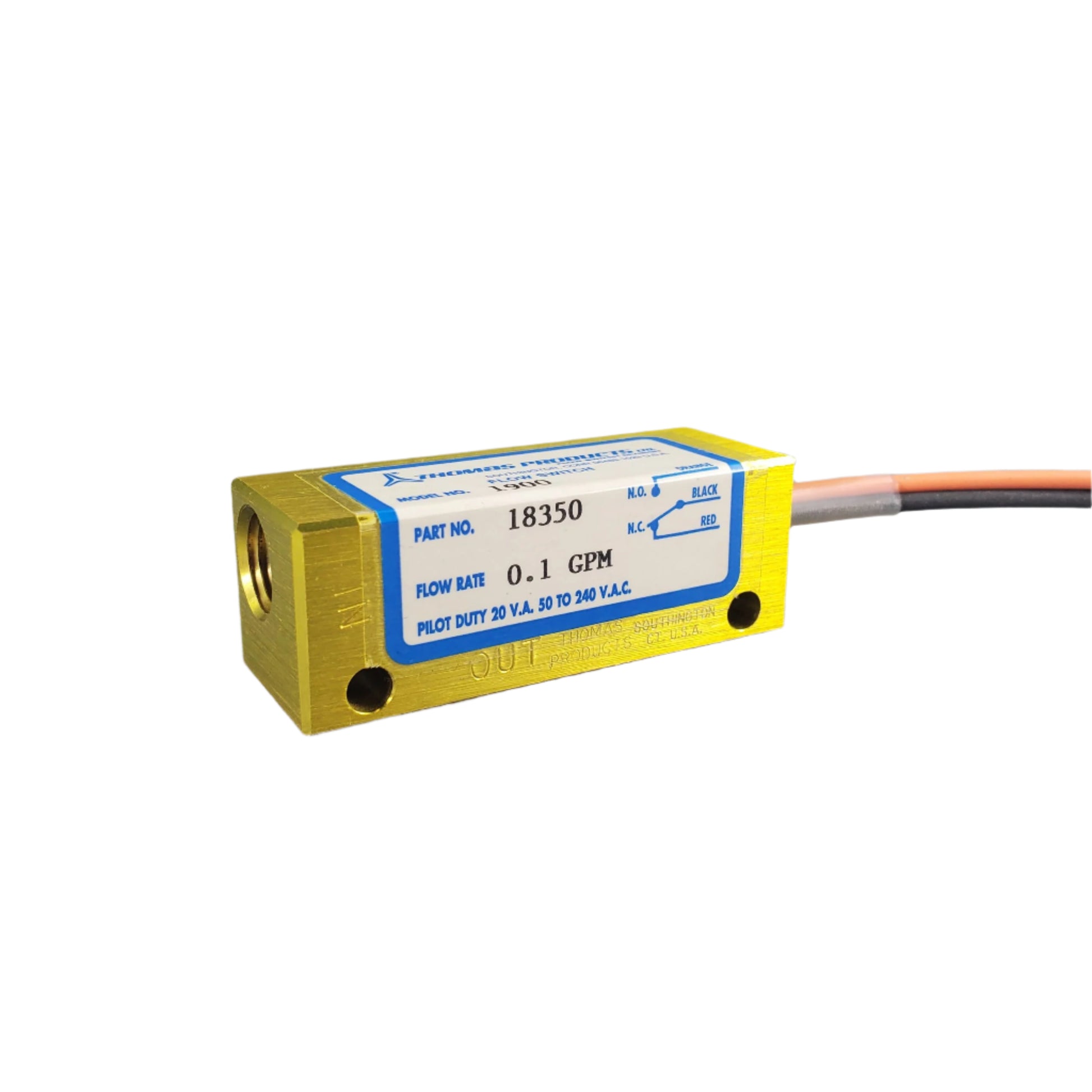

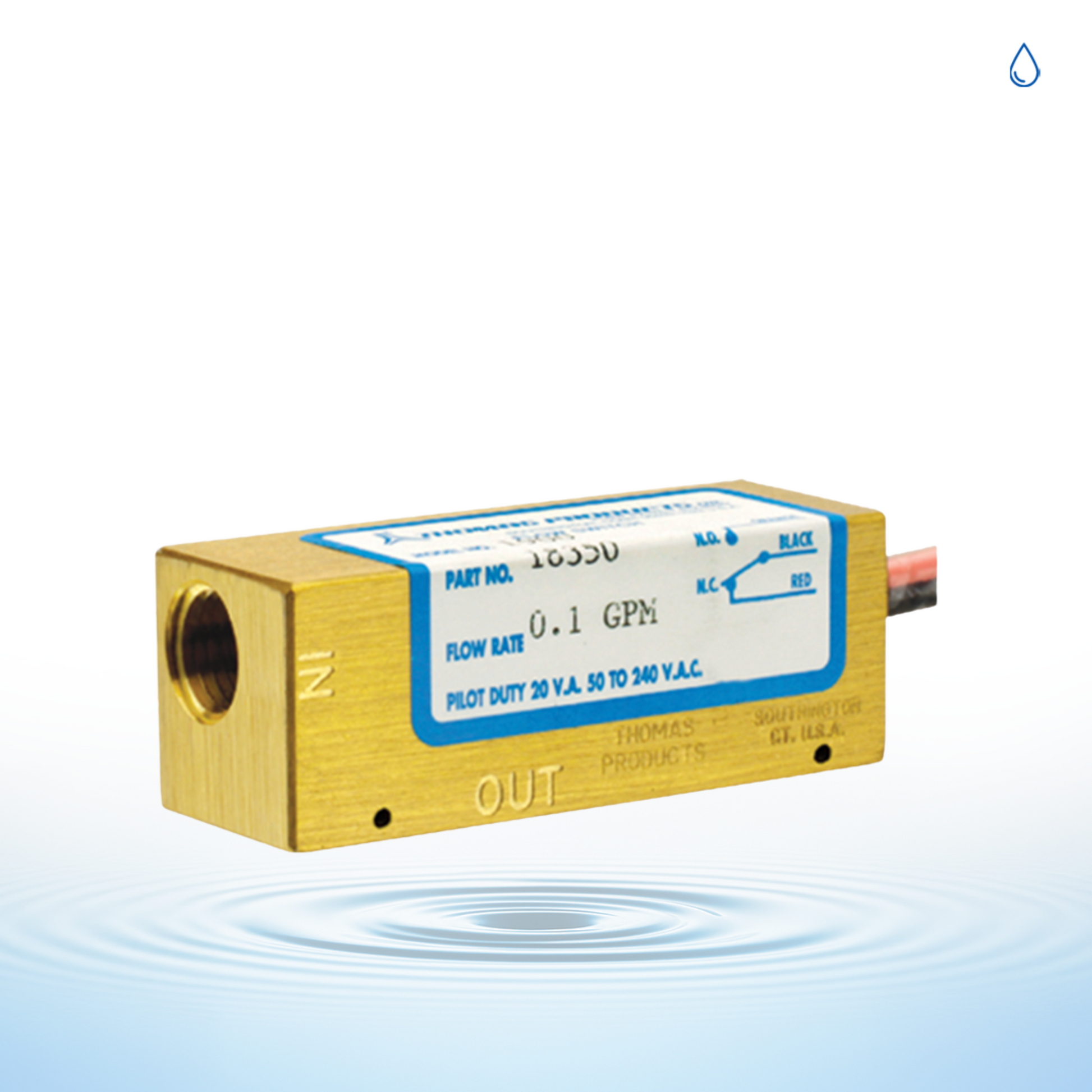

Housing Material : Brass, SST

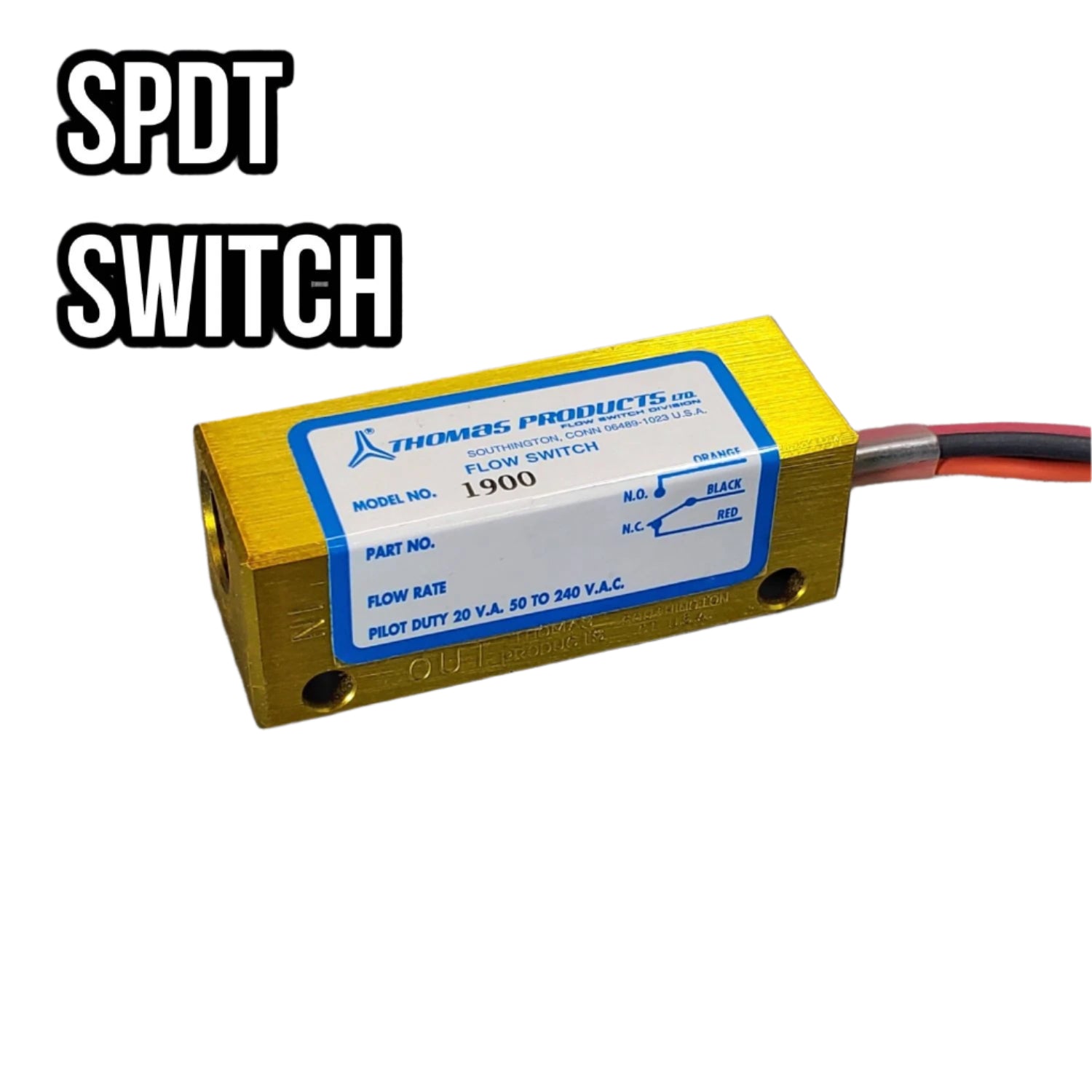

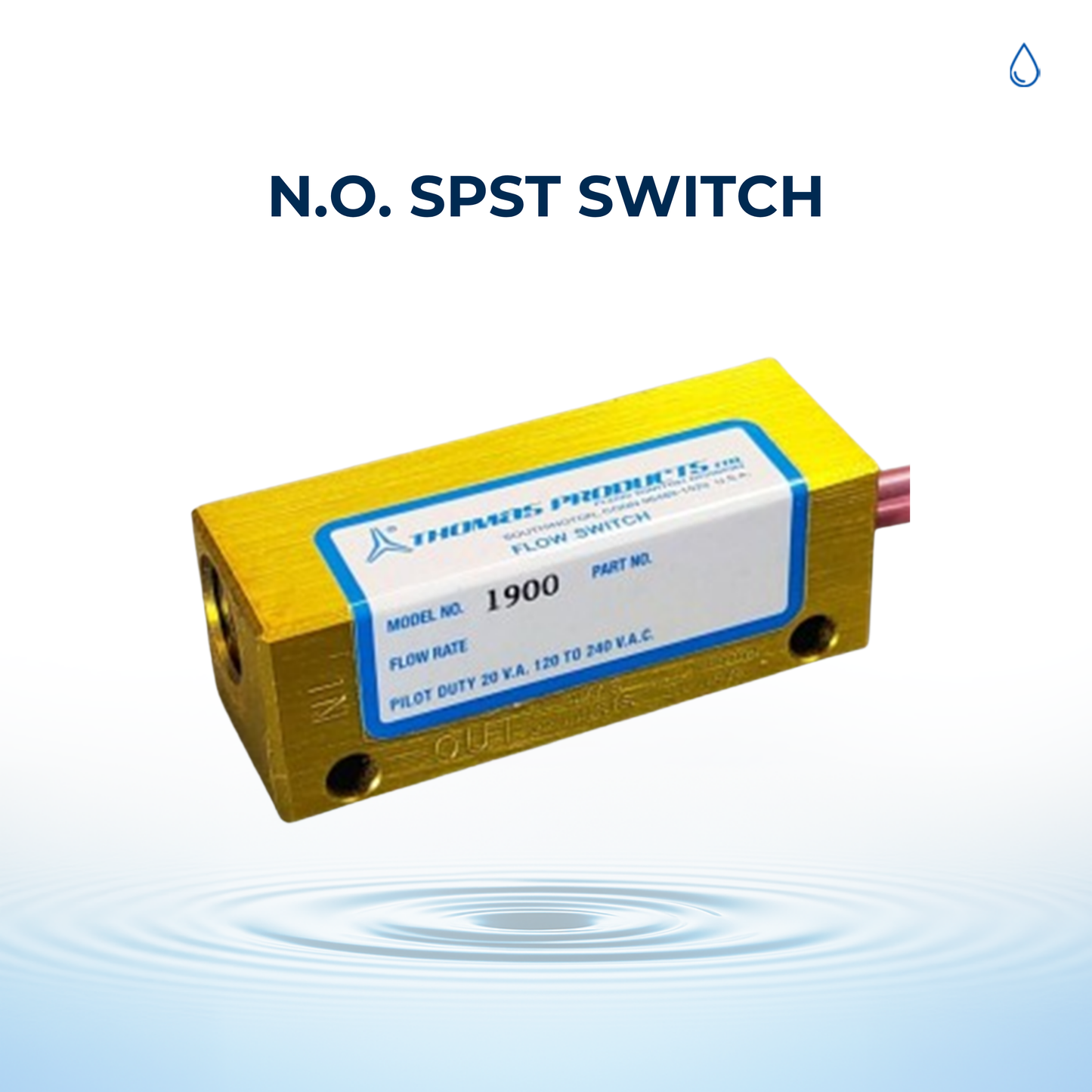

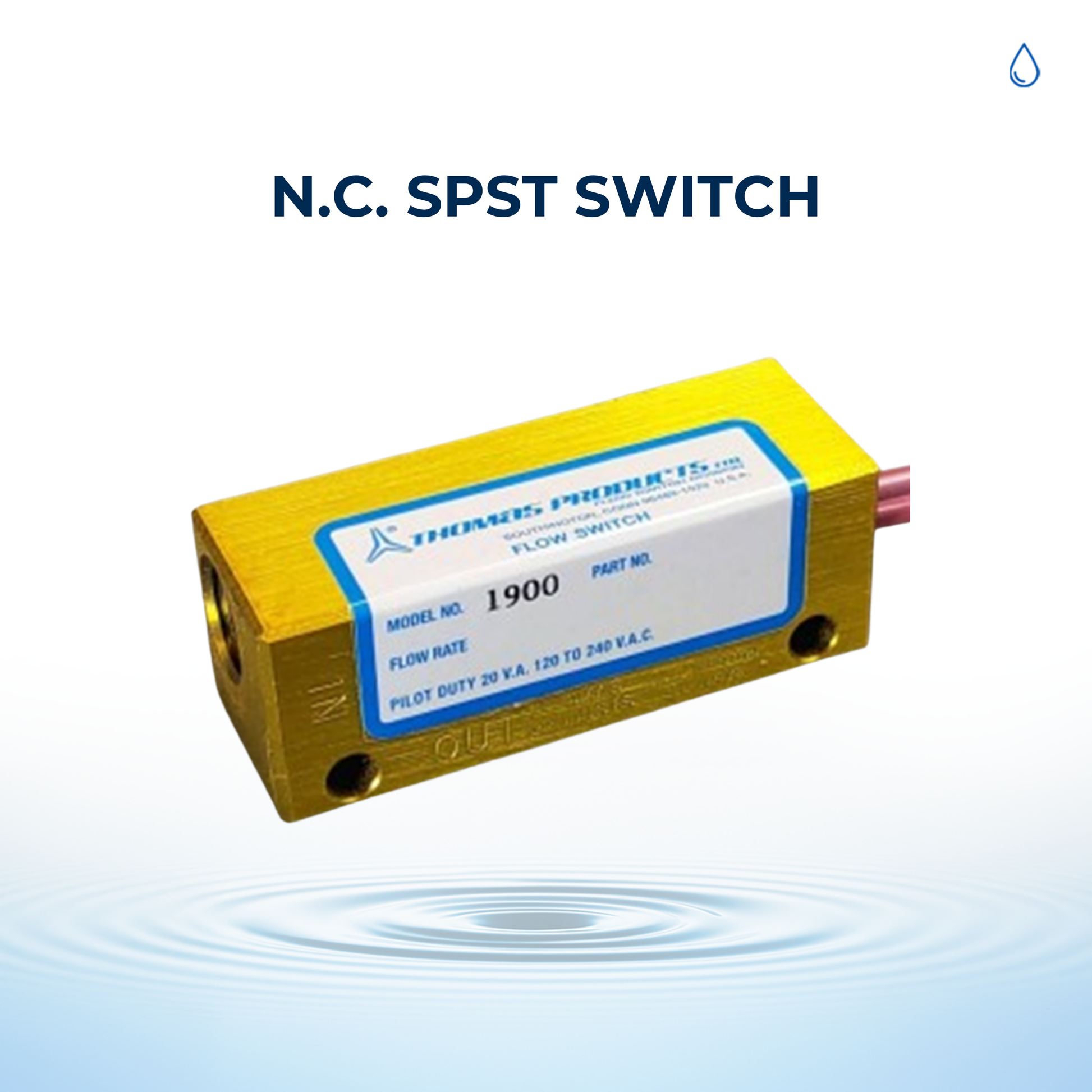

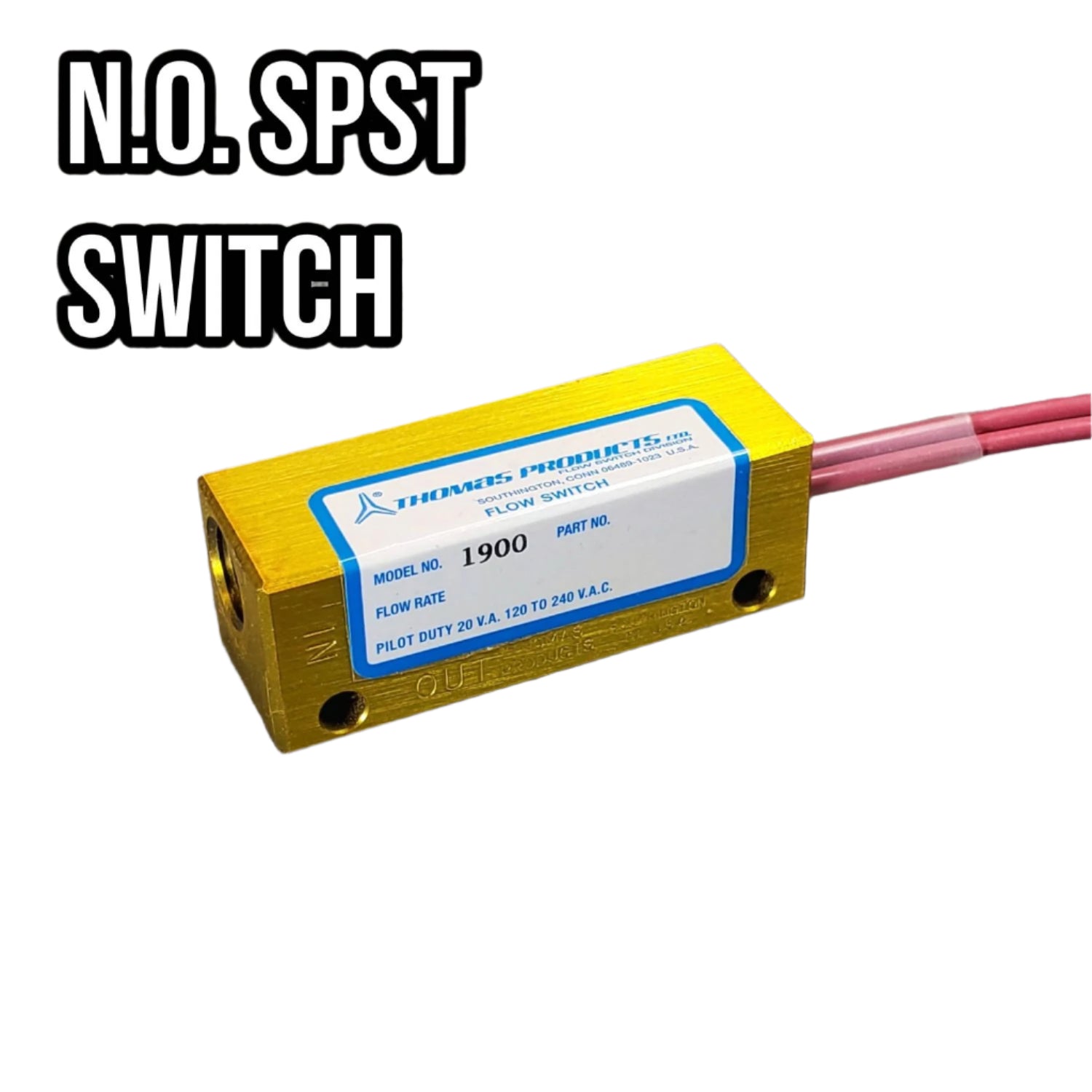

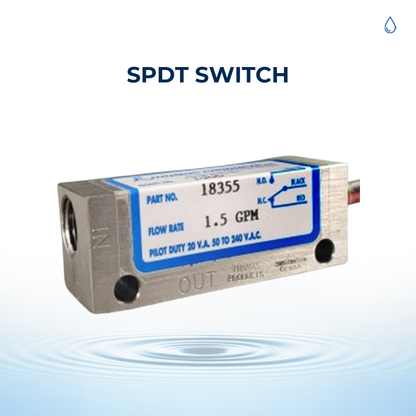

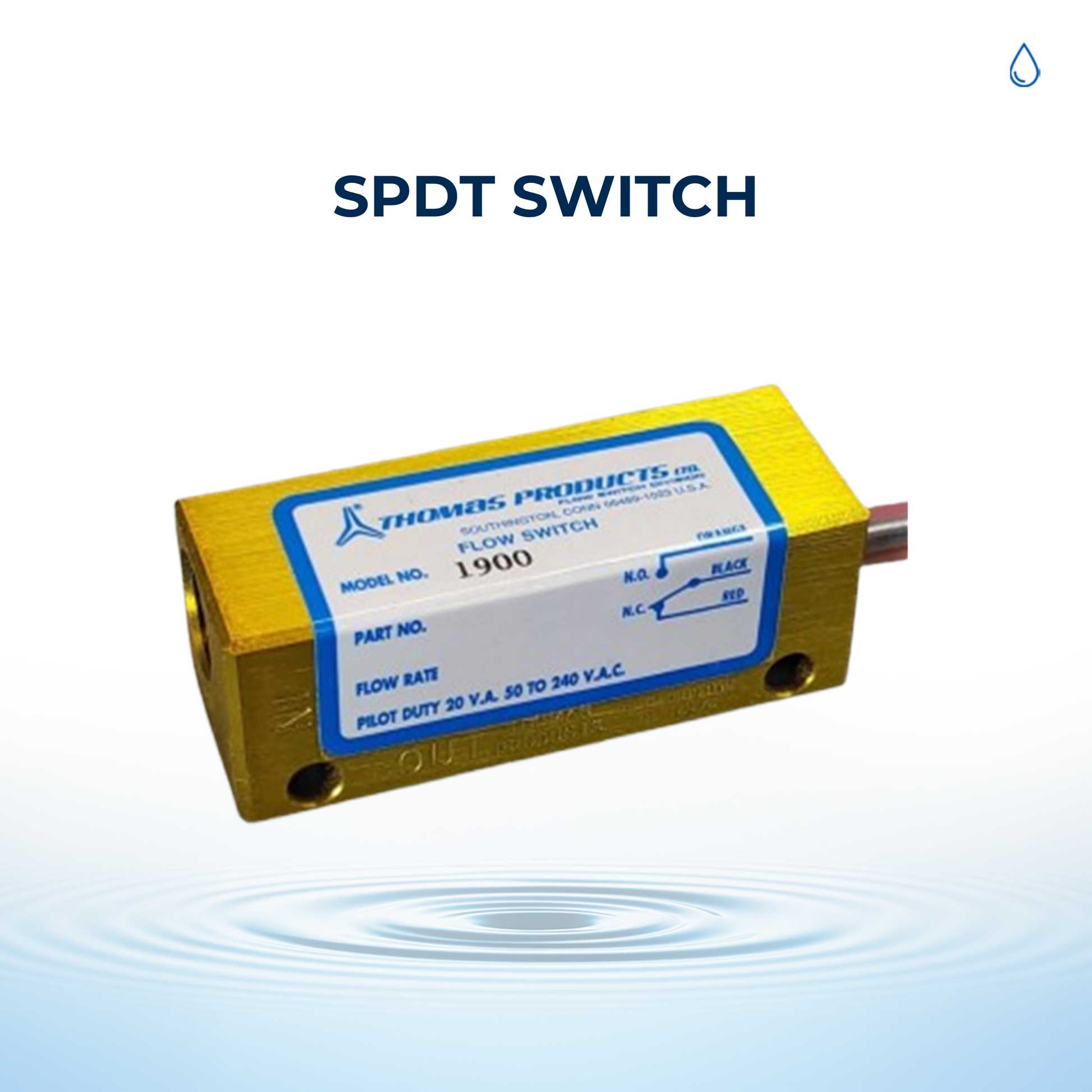

Reed Switch Logic : SPDT, Black-Common, Red-NC, Orange-NO, SPST, Red-Common, Red-NC (non-polar switch), SPST, Red-Common, Red-NO (non-polar switch)
Flow Set Point : 0.1 GPM Increasing Flow, 0.25 GPM Increasing Flow, 0.5 GPM Increasing Flow, 0.75 GPM Increasing Flow, 1.0 GPM Increasing Flow, 1.5 GPM Increasing Flow
