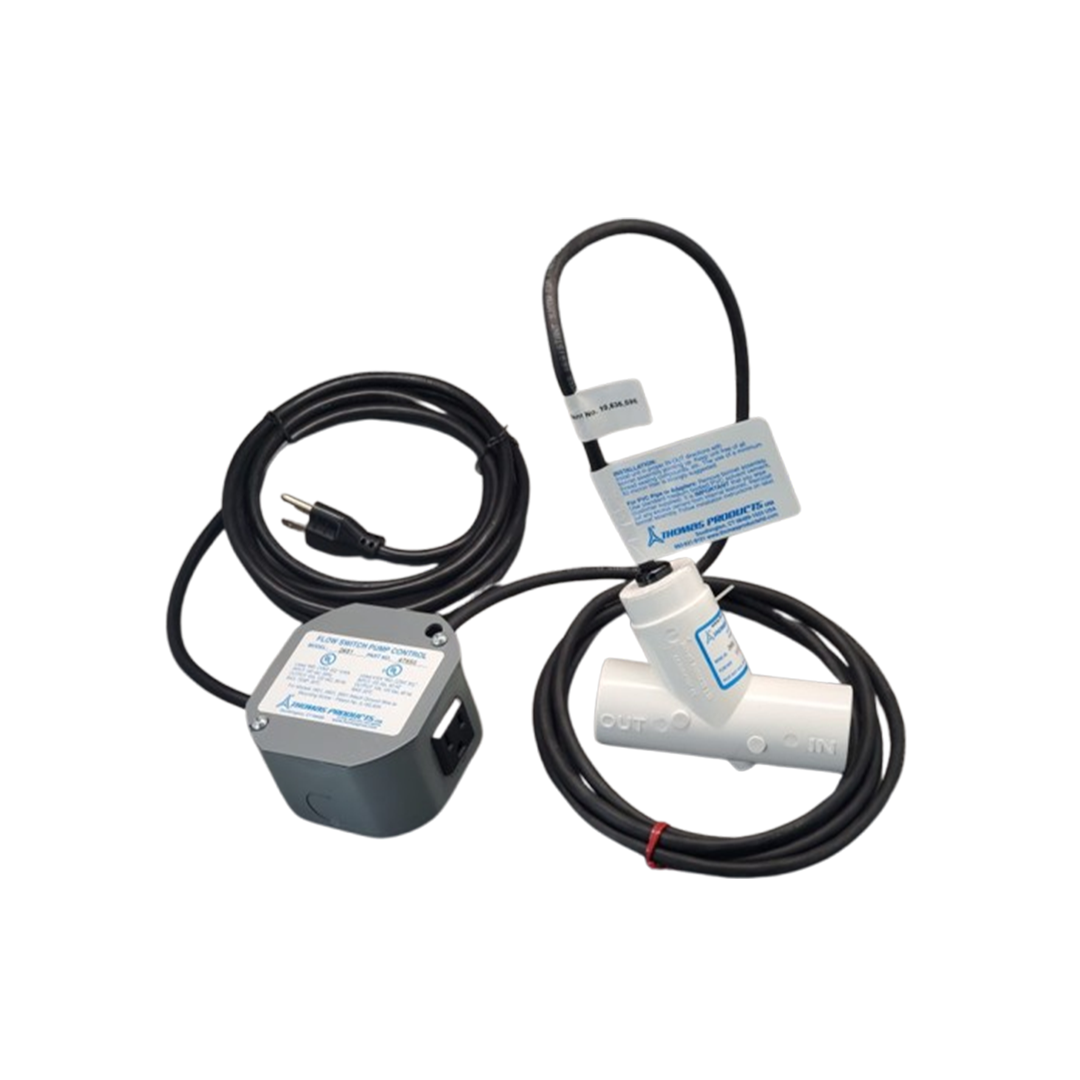

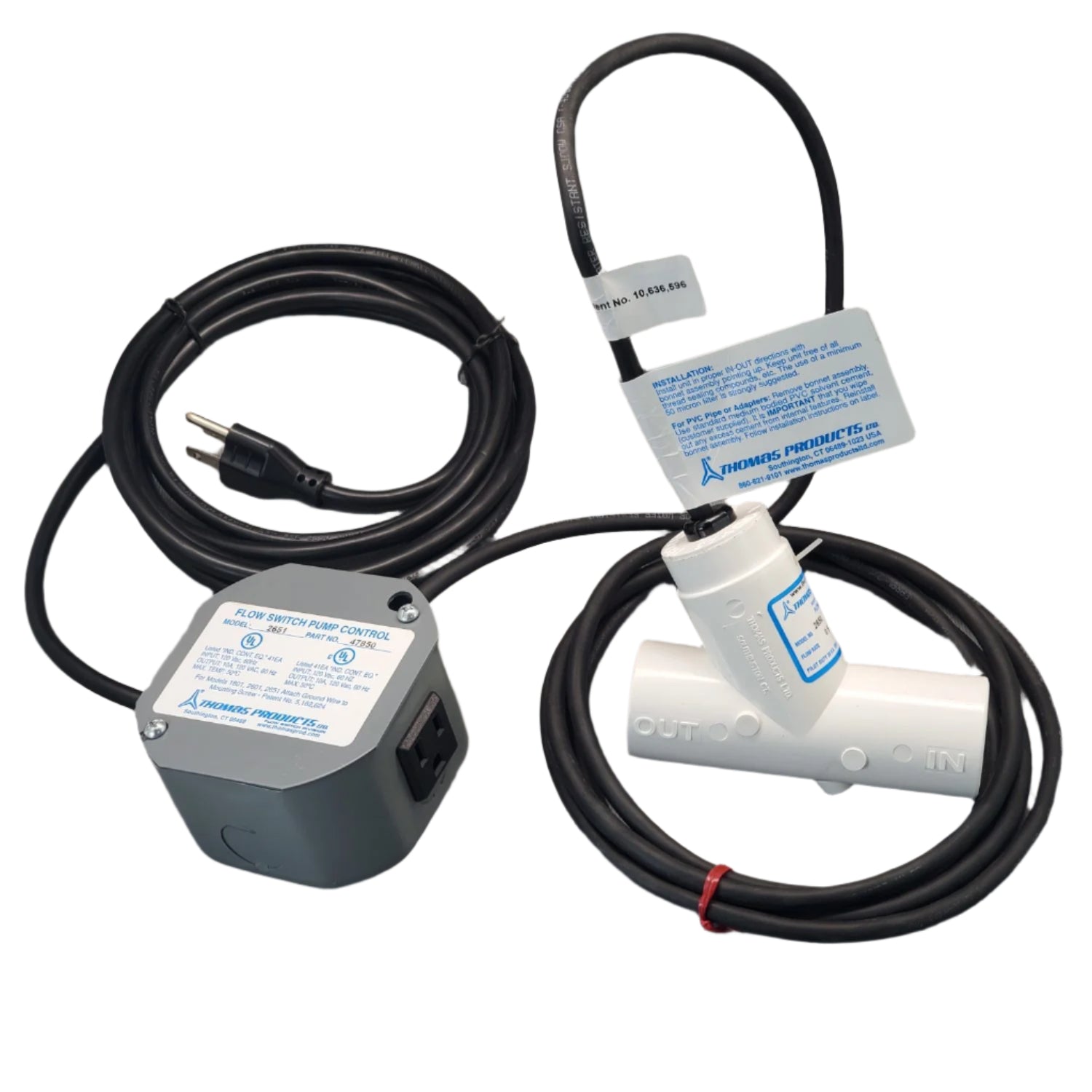

Typical Flow Switch / Pump Control Operation

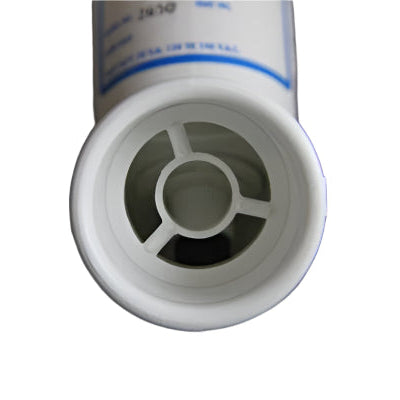

This is the same as our original 45325-B except it has been improved with our patented straight through flow module with spoked orifice that creates laminar flow to increase set point accuracy and enhance self-cleaning.
Features

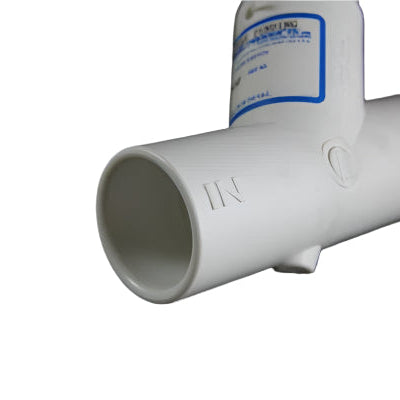

- 1” Slip Ports
- Calibrated @ 0.5 GPM On Increasing Flow.
- Flow Set Points Available To 6.0 GPM.
- Locking Wire For Easy Disassembly For Cleaning.
- True-Flow switch design utilizes a SST return spring for any mounting attitude.
- Input 120 VAC / Output 120 VAC 10A 1/2 HP.
1800 / 1801 Installation
A similar process is used for all PVC flow switches.
1800 / 1801 Maintenance
A similar process is used for all PVC flow switches.
-
Weight : 4 lbs
Dimensions : 12 × 7 × 8 in
Flow Set Point : 0.5 GPM, 1.0 GPM, 1.5 GPM, Custom Flow Set Point up to 6 GPM (Call to order)
