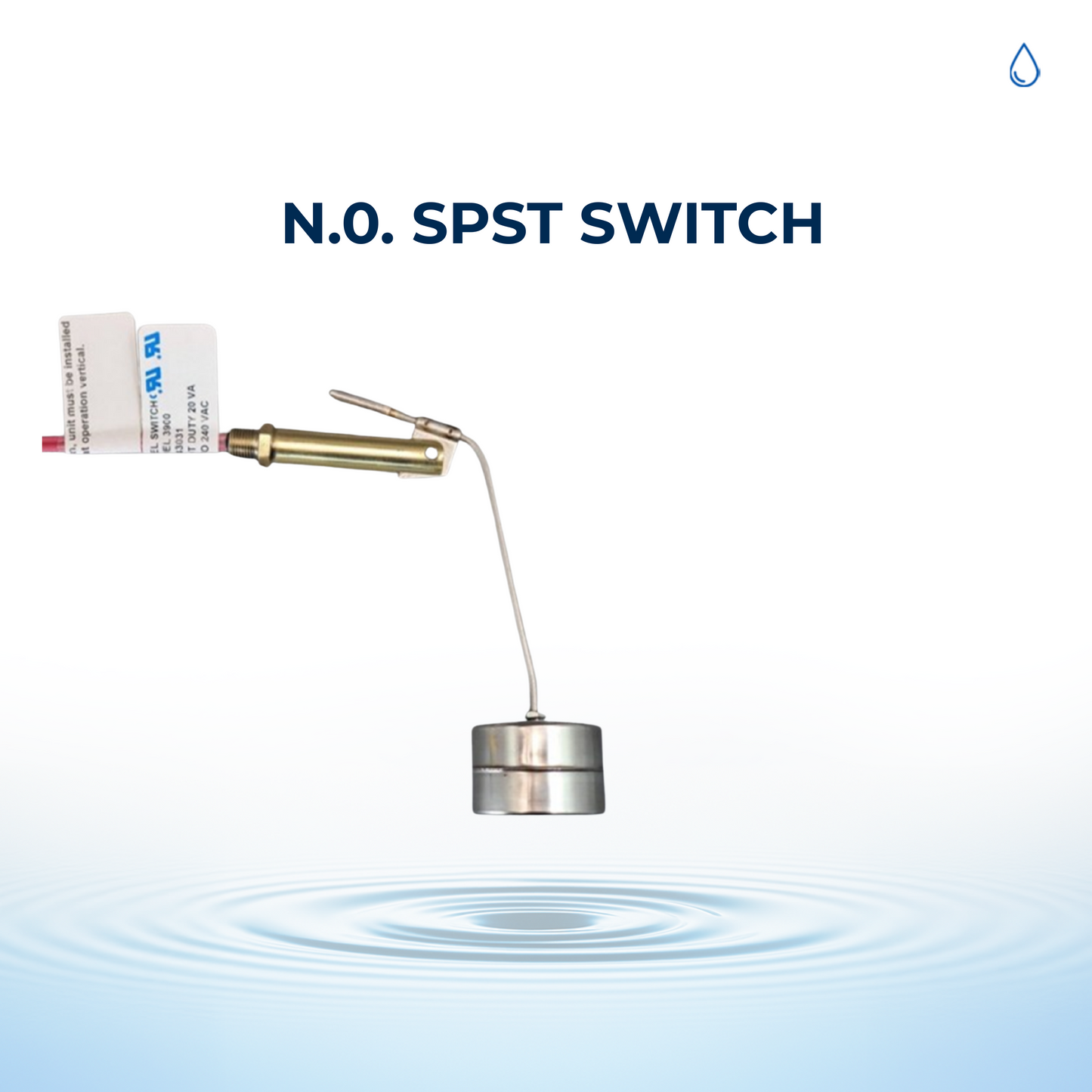

• 3900_brass_no_spst_switch_5803501a-d09a-4e50-87f4-39aea8adc0ed

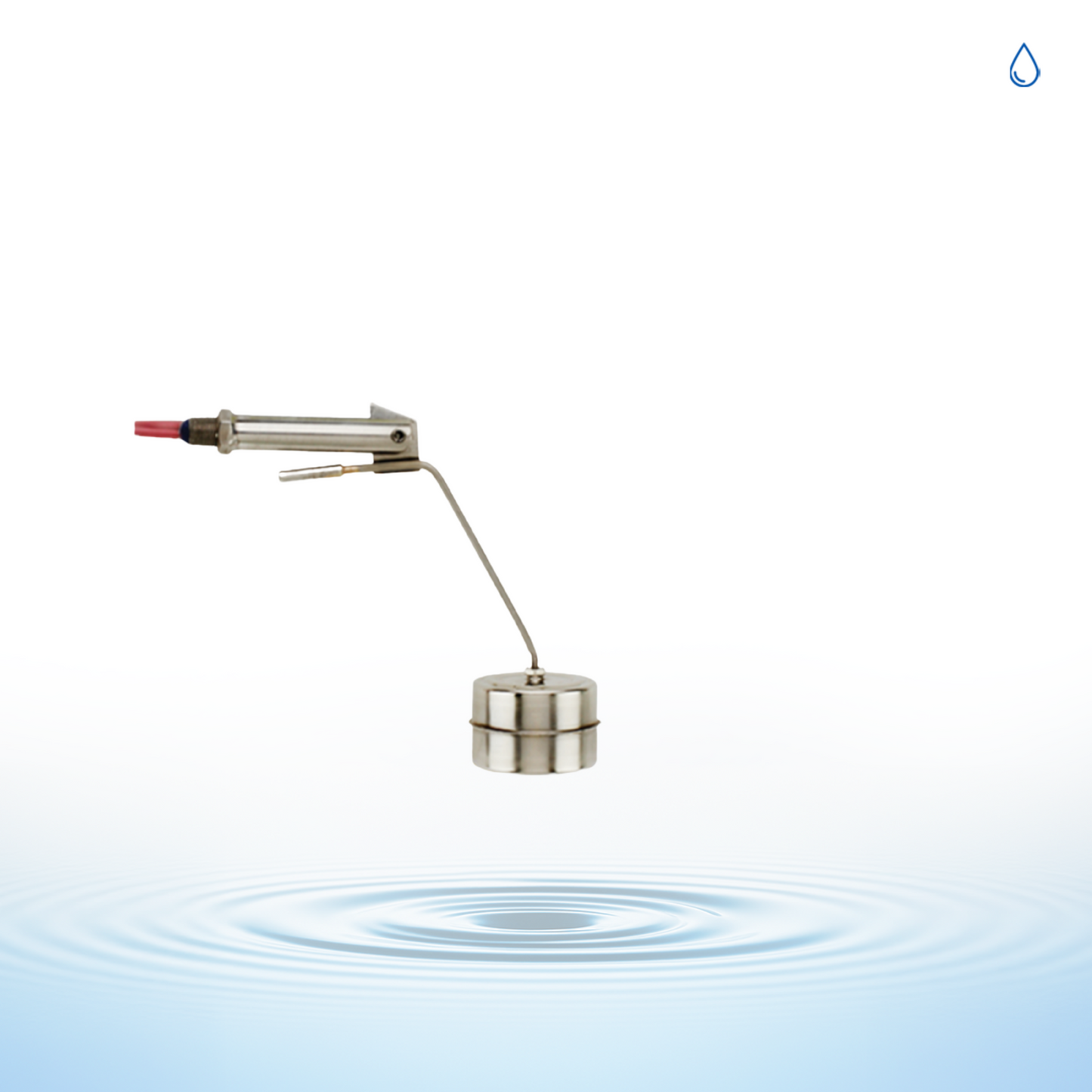

  • 3900_liquid_715085cc-e080-44a3-9147-88c996cf6606
  • top view

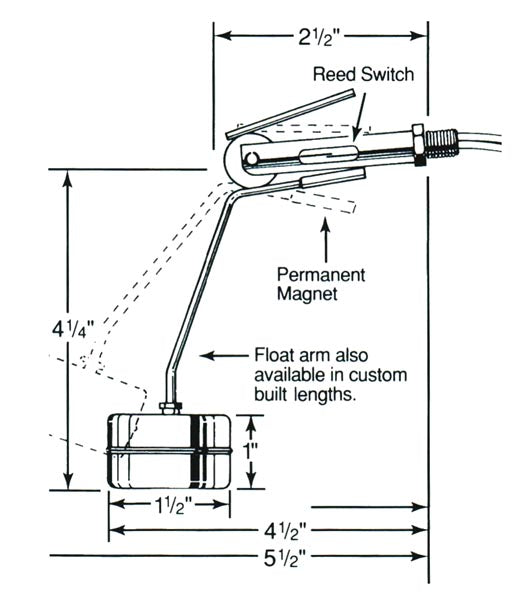

  • 2d labelled

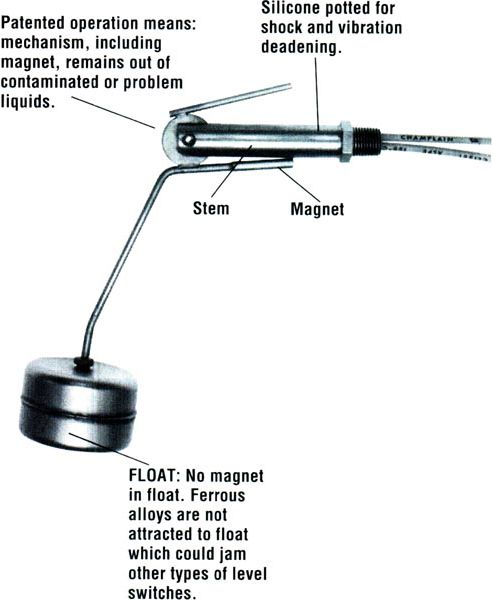

  • labelled view
  • 2d description

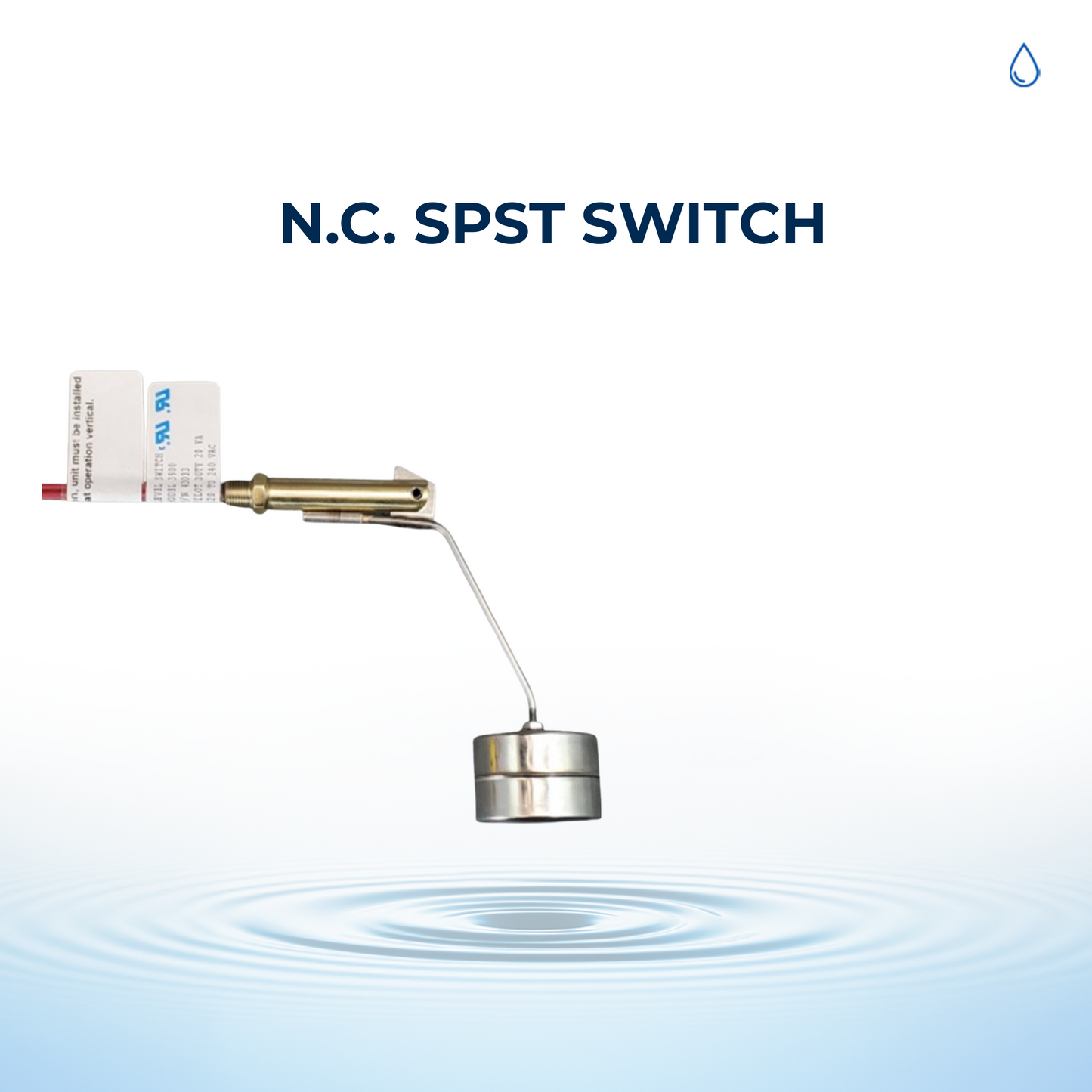

  • 3900_brass_n.c._spst_switch_b8dec37e-8177-4f86-ac0f-2e50358b49c2

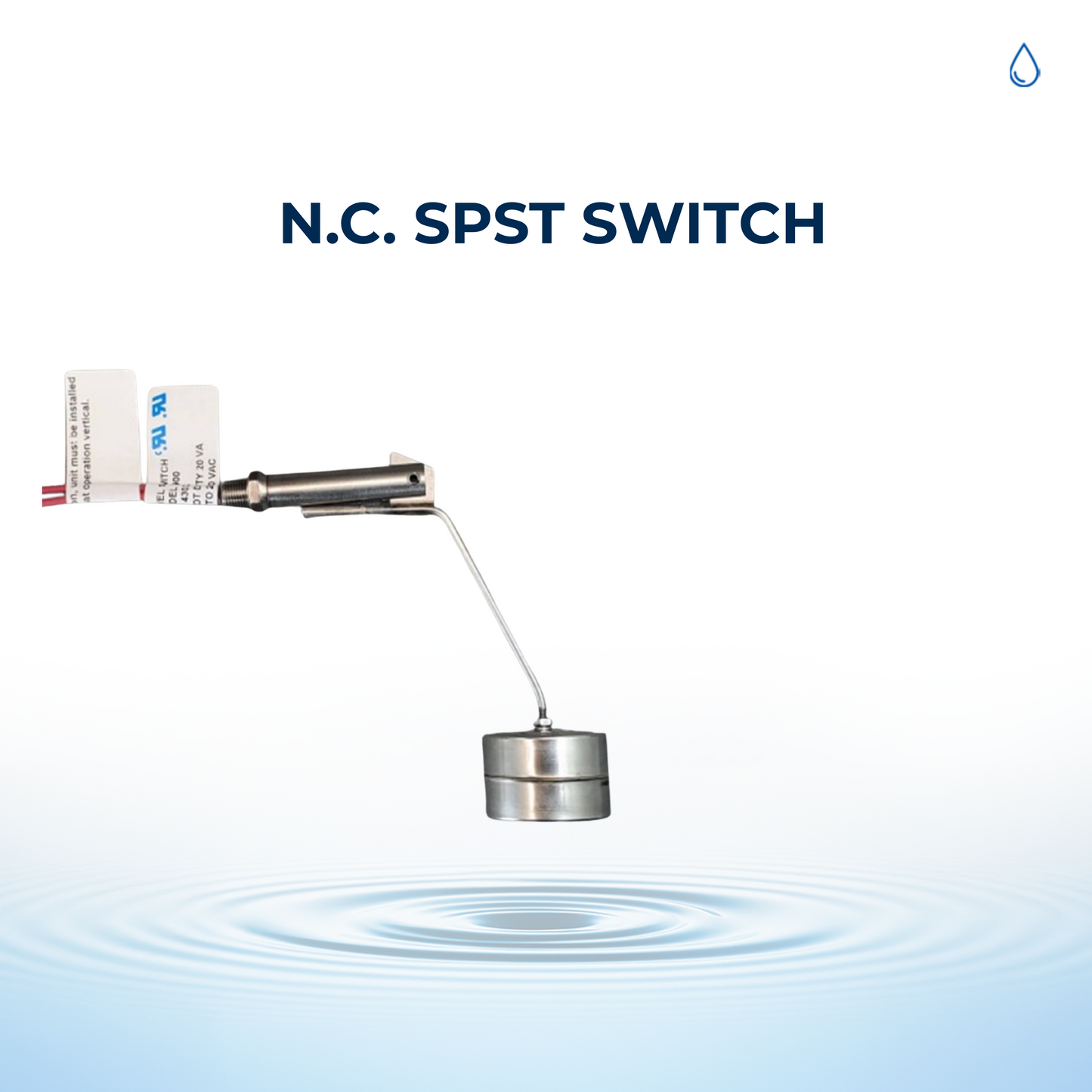

  • 3900_sst_n.c._spst_switch_62cea6bd-f10e-4415-87da-d6892f98f38b

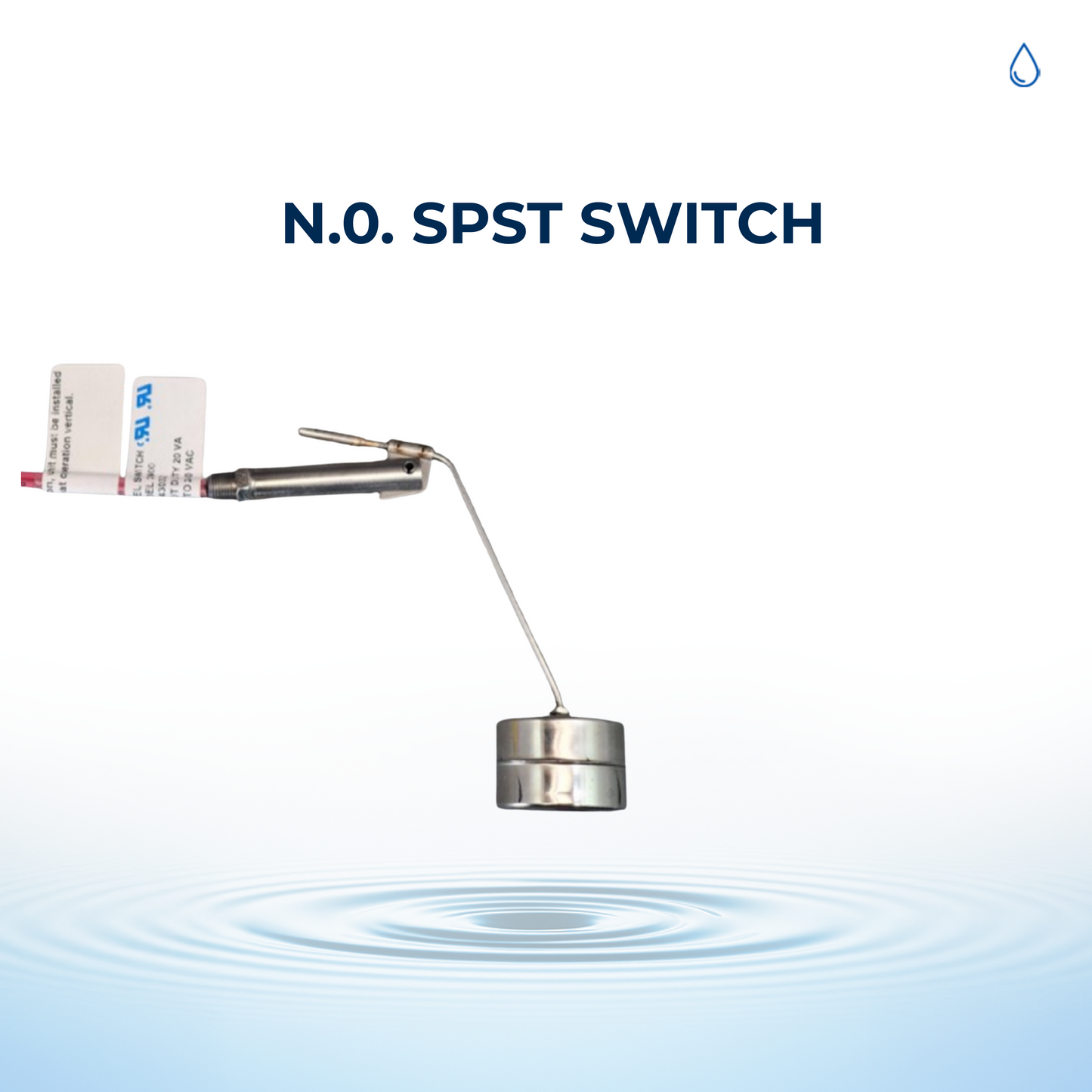

  • 3900_sst_n.o._spst_switch_080de0b7-4dd4-4518-a23e-bdd17091c9d4
1 9

P/N 43031

3900 Series (ONLY AVAILABLE IN LARGE QTY. CALL TO ORDER)

3900 Series (ONLY AVAILABLE IN LARGE QTY. CALL TO ORDER)

SKU: 43031
$118.80 USD
$118.80 USD
Model 3900, Liquid Level Switch, 1/8″ MNPT Internal Tank Mounting, SPST 20VA Pilot Duty
Sale
Lead Time: 2-3 weeks

Estimated delivery

Call us for factory expedite. Shipping expedite is seperate.

View full details

Product Notes

  1. Other mounting styles available. Consult factory.
  2. Float Sp. Gr .. 5.
  3. Consult factory for operating temperatures to 450°F.
  4. Switch logic in tank dry condition per drawing 1.0.
  5. Optional 100W SPST reed switches are stocked. Consult factory.
  6. Relays are available for handling higher loads than allowed. See Accessories section for details.

      Weight : 1 lbs Dimensions : 10 × 8 × 6 in Wetted Materials : Brass, SST, AlNiCo, SST, AlNiCo Reed Switch Logic : SPST, Red-Common, Red-NC (non-polar switch), SPST, Red-Common, Red-NO (non-polar switch)
