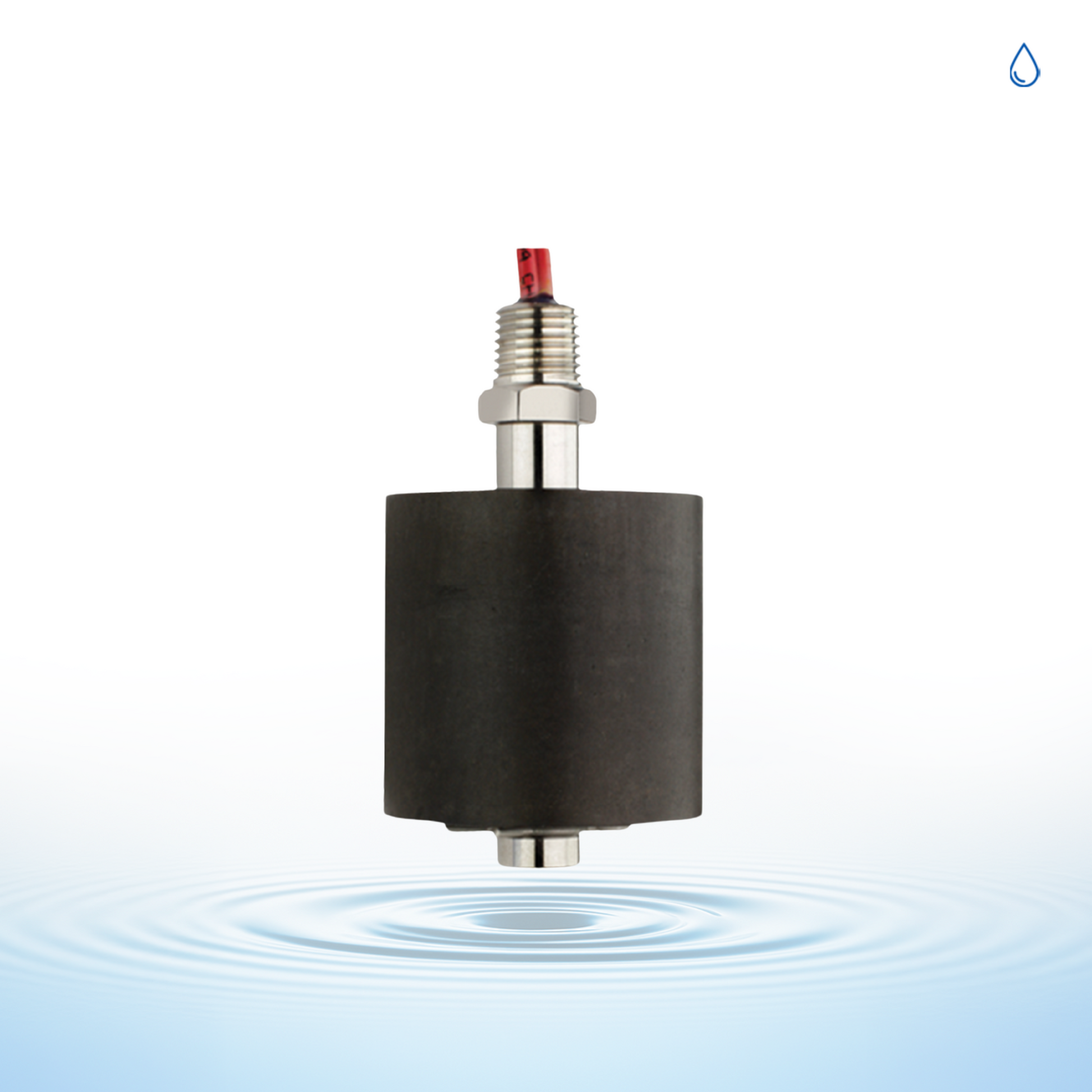

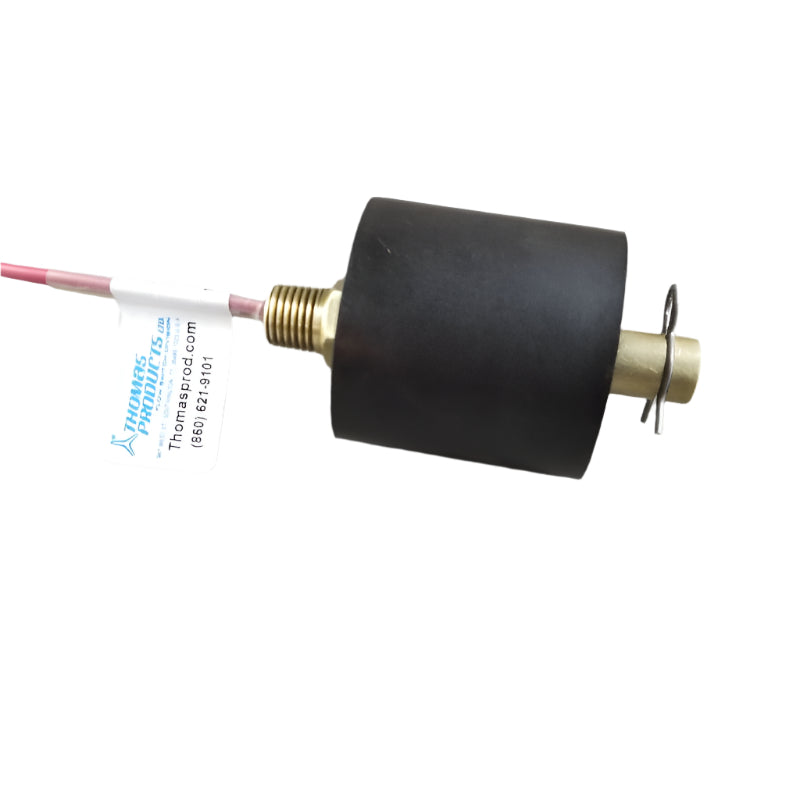

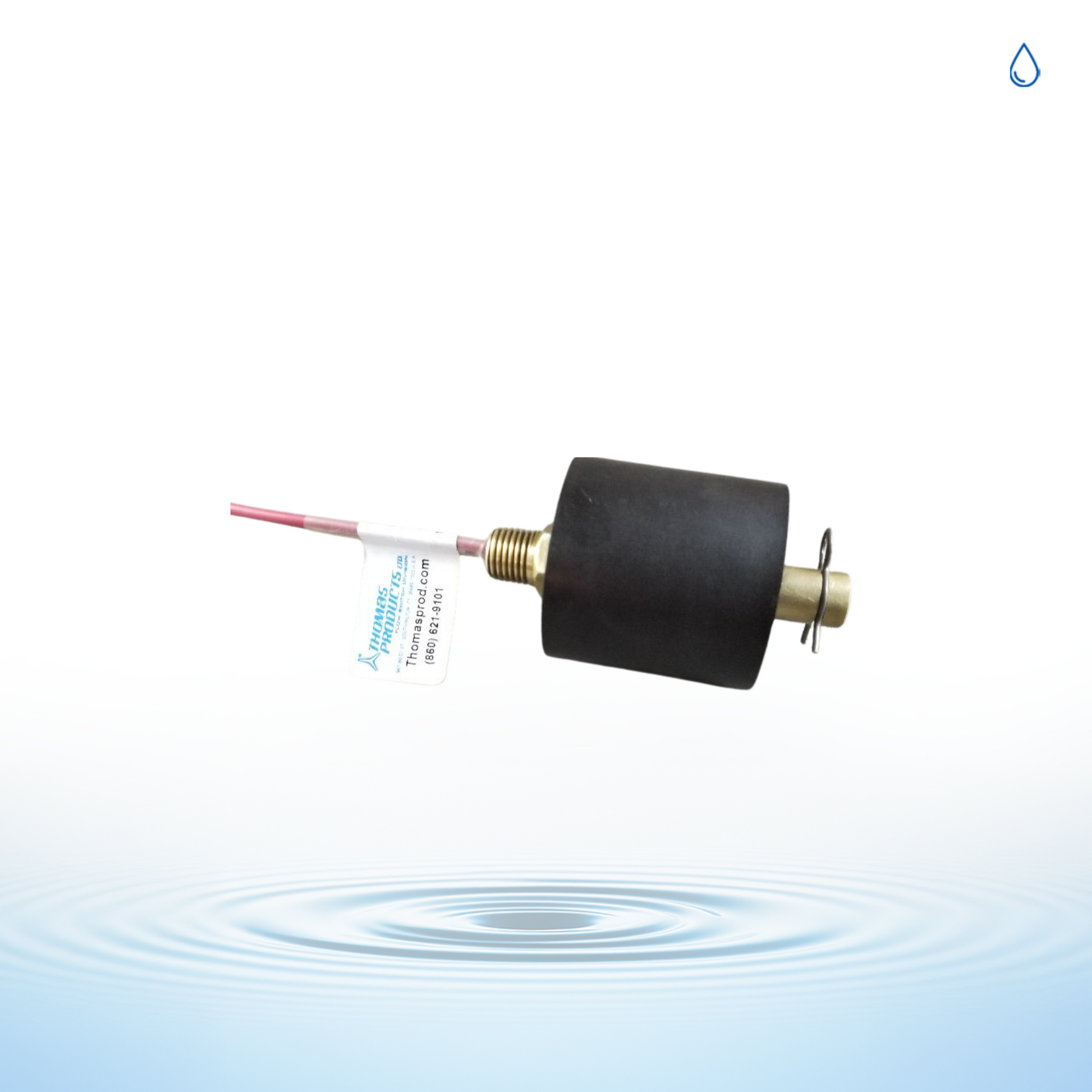

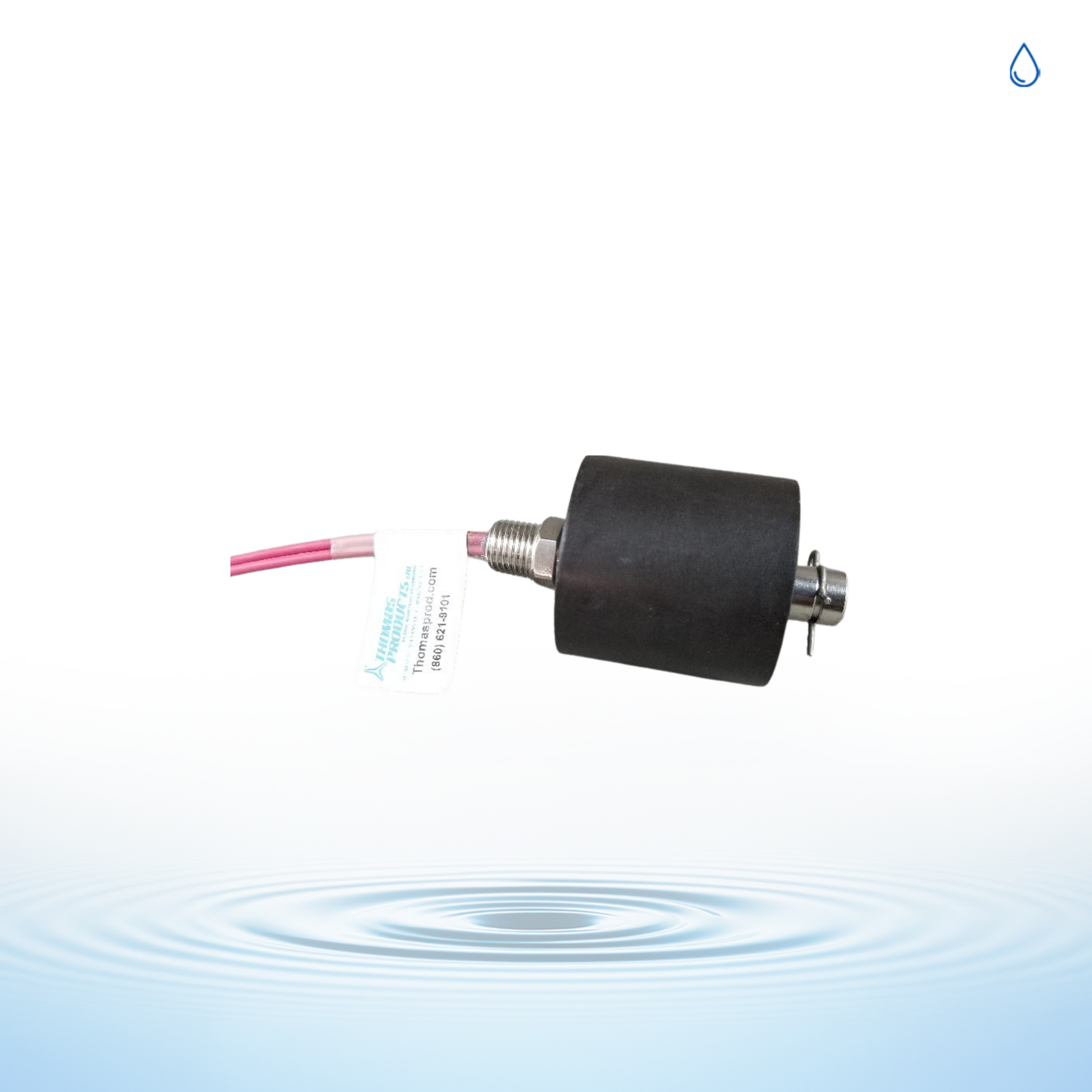

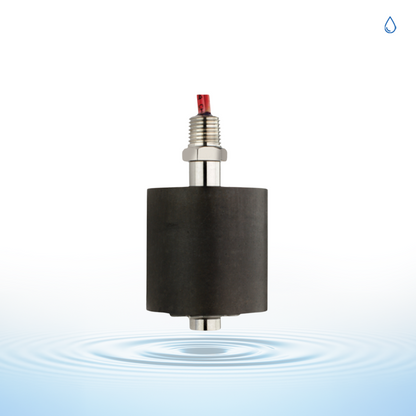

4600 Series Liquid Level Switch – 1/4″

PRODUCT NOTES

1. Lead wires are available in different lengths, terminated ends or cable. Consult factory. See Note 12.
2. Relays are available for handling higher loads than allowed. See Accessories section for details.
3. Float specific gravity… .55
4. Float specific gravity… .65
5. Float specific gravity… .7
6. Float specific gravity… .80
7. Other standard mountings are available, i.e. 1 /4″ and 1/2″ NPT, bulkhead, etc. Consult factory.
8. SPOT switches are available. Consult factory.
9. Teflon coated stems are available. Consult factory.
10. Teflon factory coated floats are available. Consult factory.
11. High temperature units up to 450°F are available. Consult factory.
12. Custom interface floats are available. Consult factory.
13. Optional PVC cable UL 2464 AWG #22 300V 80°C Underwriters Laboratories recognized. Consult factory.
14. SPOT reed switches are available. Consult factory.
15. Float specific gravity… .57
16. All dimensions and specifications are typical to Model 4200 P/N 41003 except lead length of 36″ max.

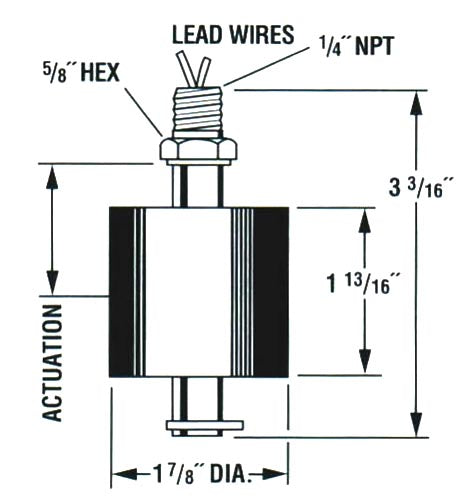

17. All dimensions and specifications are typical to Model 4200 P/N 41003 except lead length of 36″ max and float P/N 3482. See drawing.
18. All dimensions and specifications are typical to Model 4700 P/N 41301 except lead length of 36″ max.
19. Optional float available for S.G. of .65 specify switch logic for top mounting N.O. or N.C. tank dry condition.
