Product Notes
- Teflon® coated stems and floats are available. Consult factory.
- Lead wires are available in different lengths, terminated ends or cable. Consult factory.
- Relays are available for handling higher loads than allowed. See Accessories section for details.
- Custom bend locations are available per your specification. Consult factory.
- High temperature units are available up to 450°F. Consult factory.
- 100 VA SPST non-UL reed switches are stocked. Consult factory.

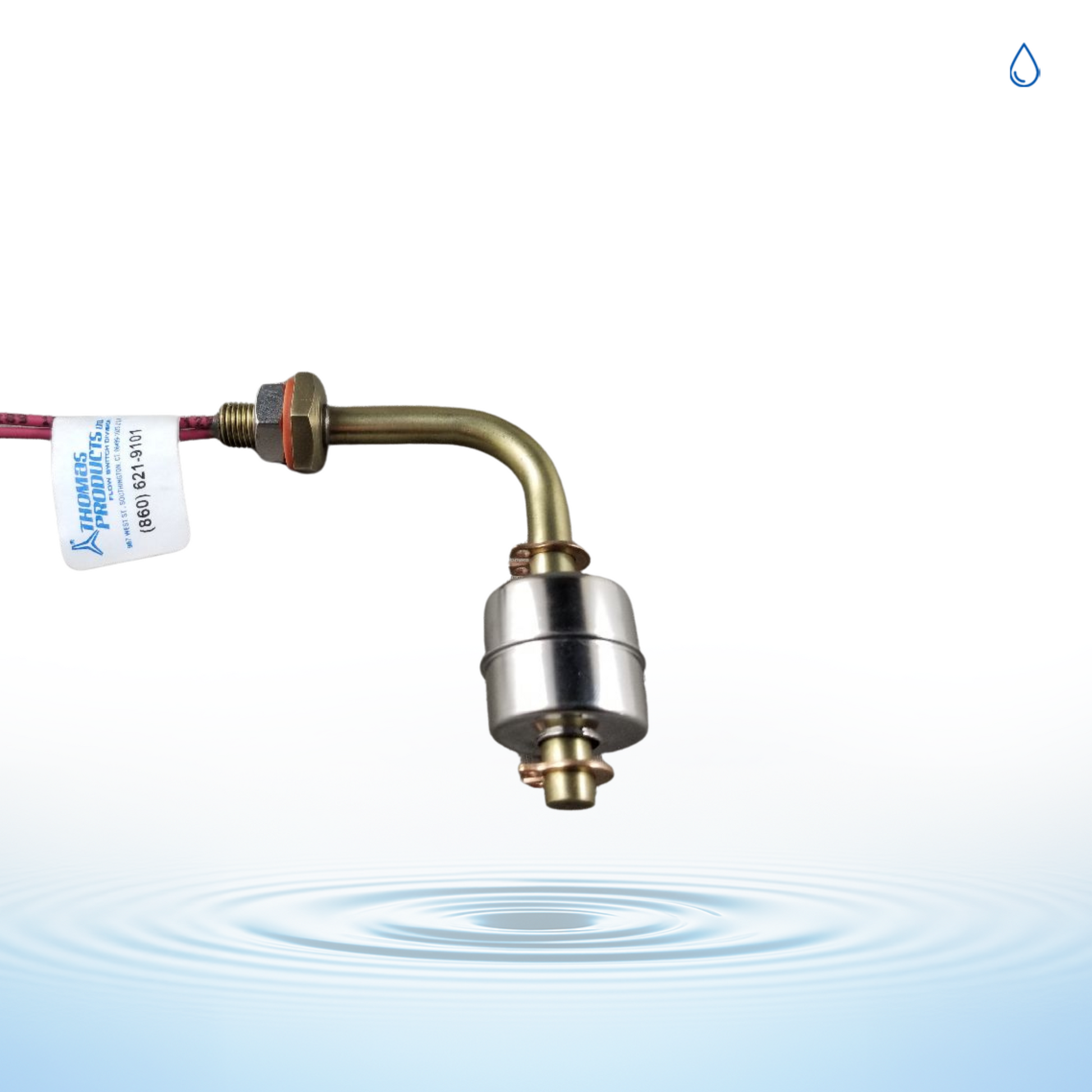

- Brass units use beryllium copper grip rings. SST units use 15-7 Mo SST grip rings.
- Optional collars are available from stock. See drawing 1.1. Consult factory.
- Silicone gasket 1″ 0.0. x 3/8″ 1.0. x 1/16″ thick 40 durometer.

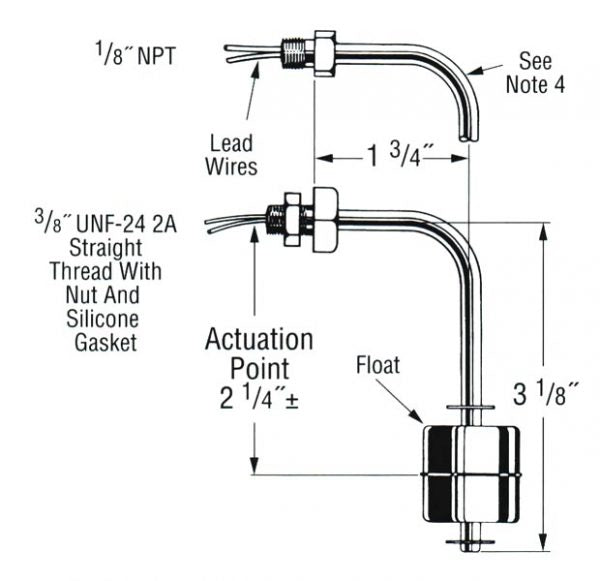

- 1/8″ NPT mounting installs from inside the tank into a 1 /8″ NPT boss.
- 3/8″-24 UNF 2A mounting installs from the inside of the tank into a 13/32″ dia. hole.
- Interface floats are available. Consult factory.
-
Weight : .5 lbs
Dimensions : 8 × 5 × 3 in
Housing : MaterialBrass, SST

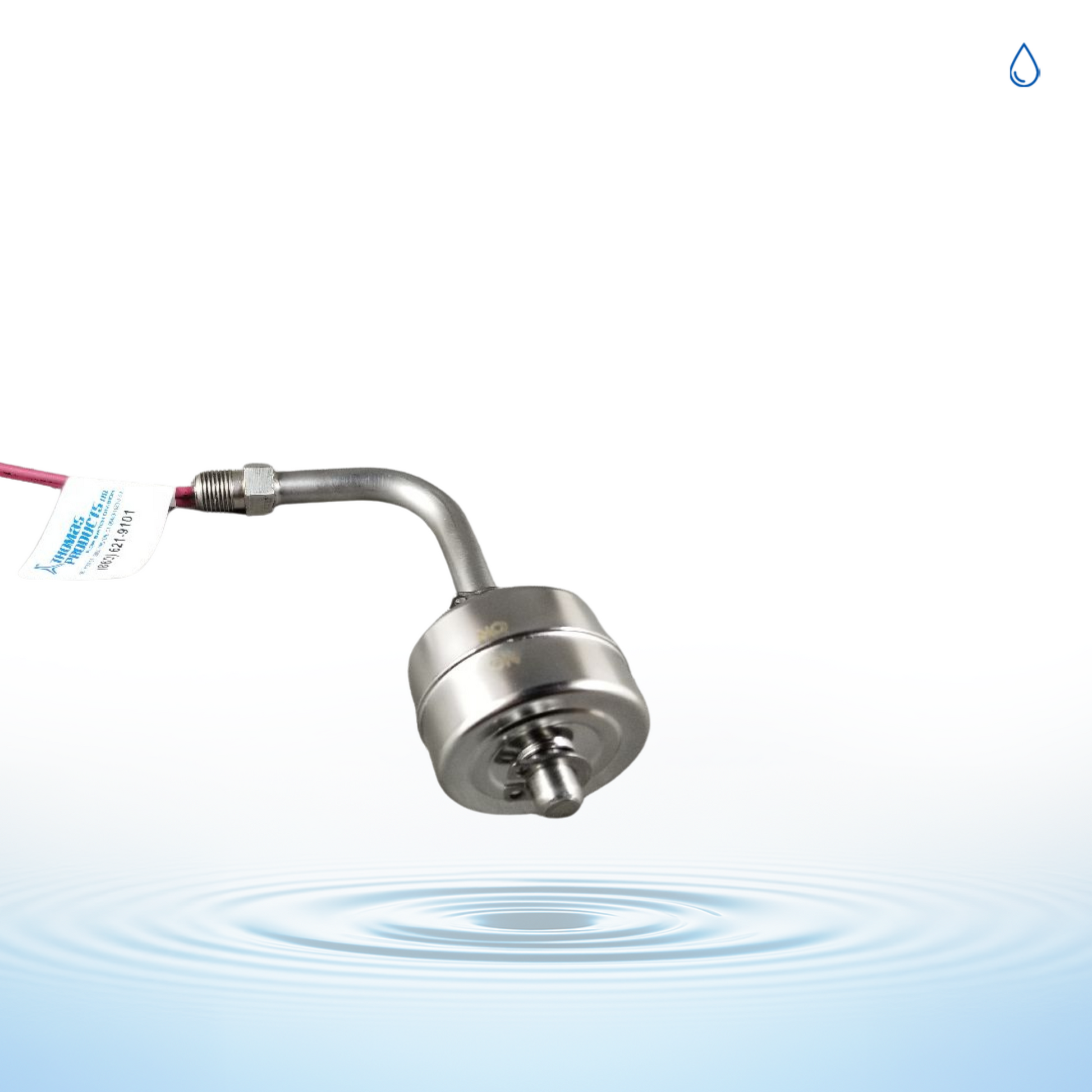

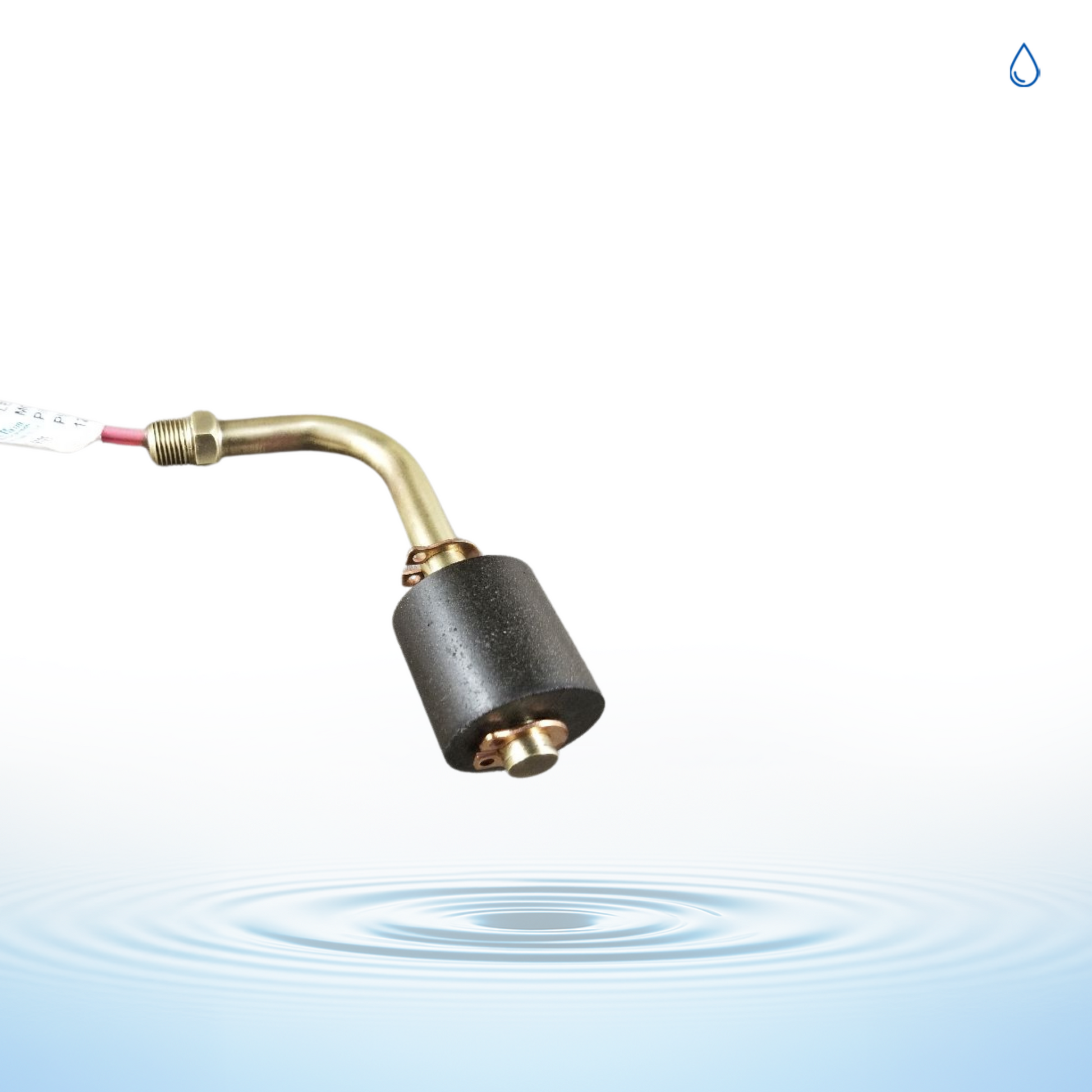

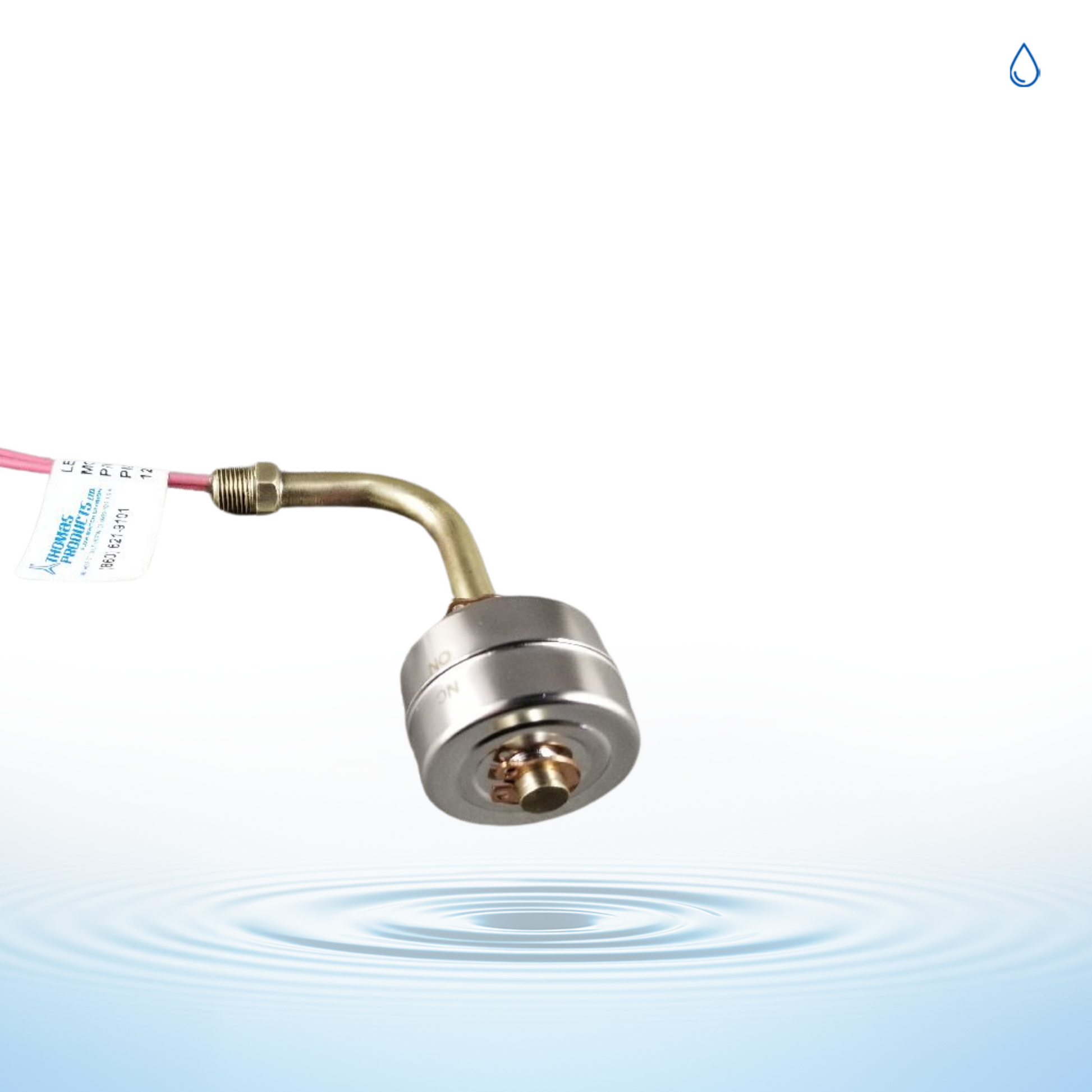

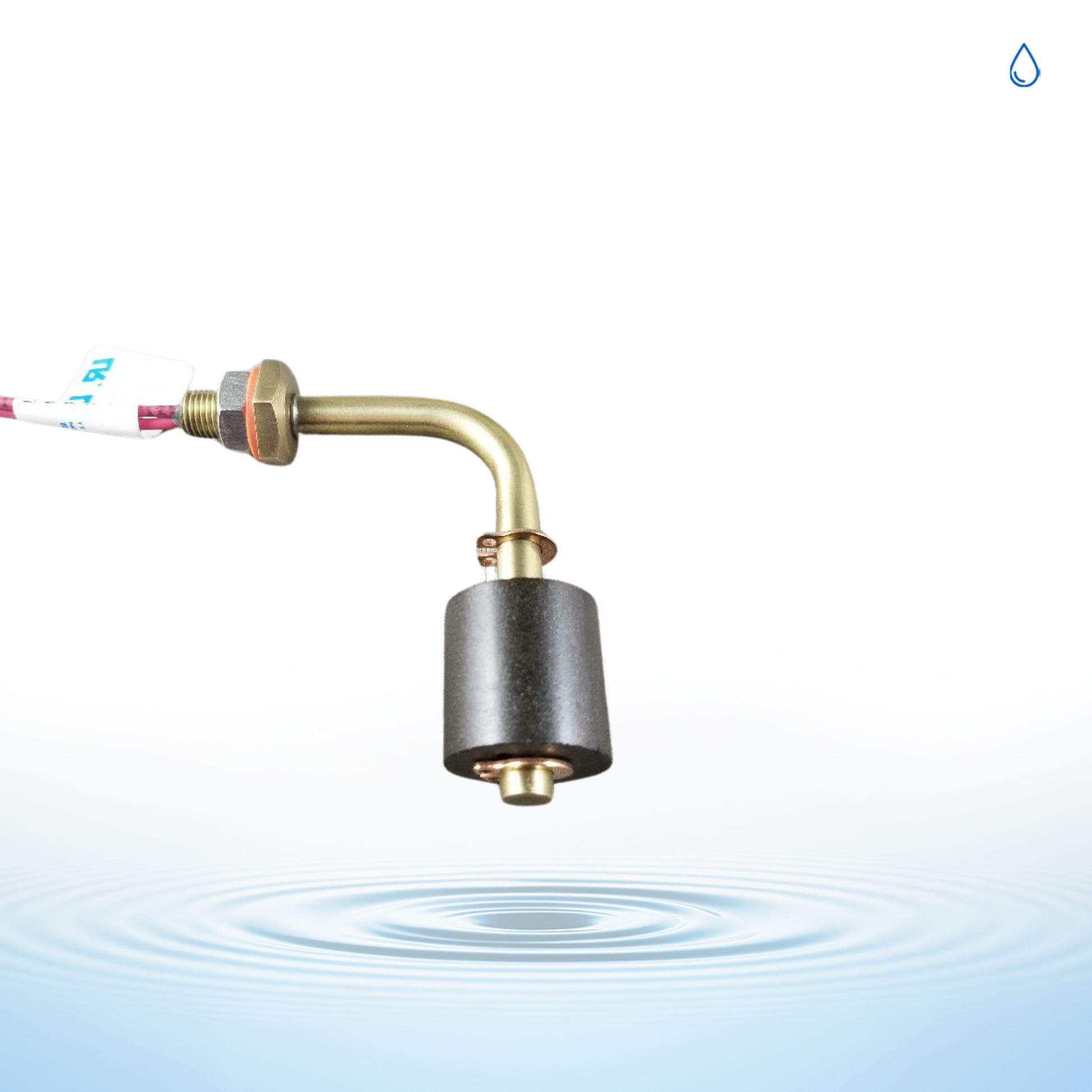

Float : 1" Dia. SST, 1" Dia. Buna N, 1-5/8" Dia. SST

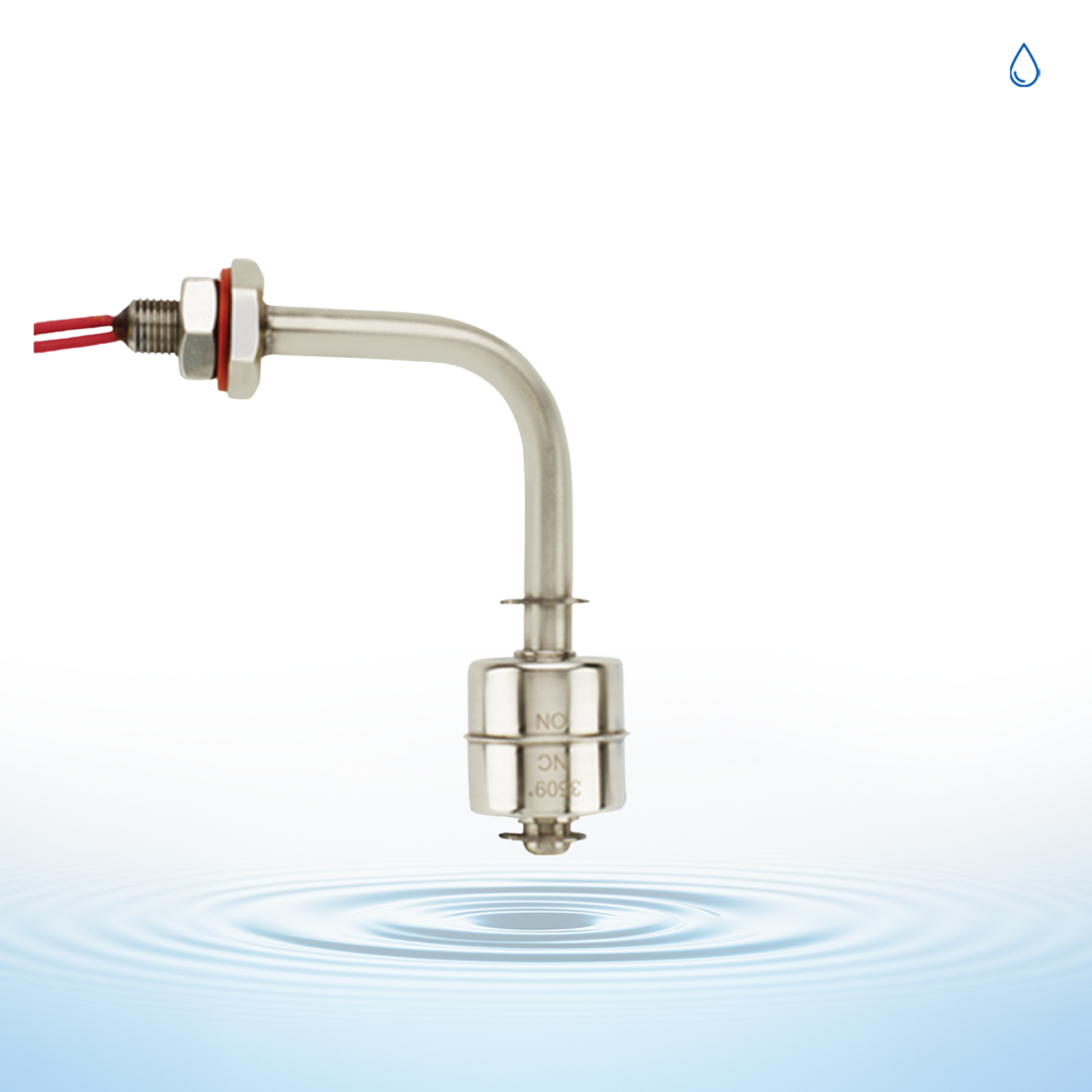

Mount : 3/8"-24 Bulkhead With Nut – Internal Tank Mounting, 1/8" MNPT Internal Tank Mounting
