Typical Flow Switch / Pump Control Operation

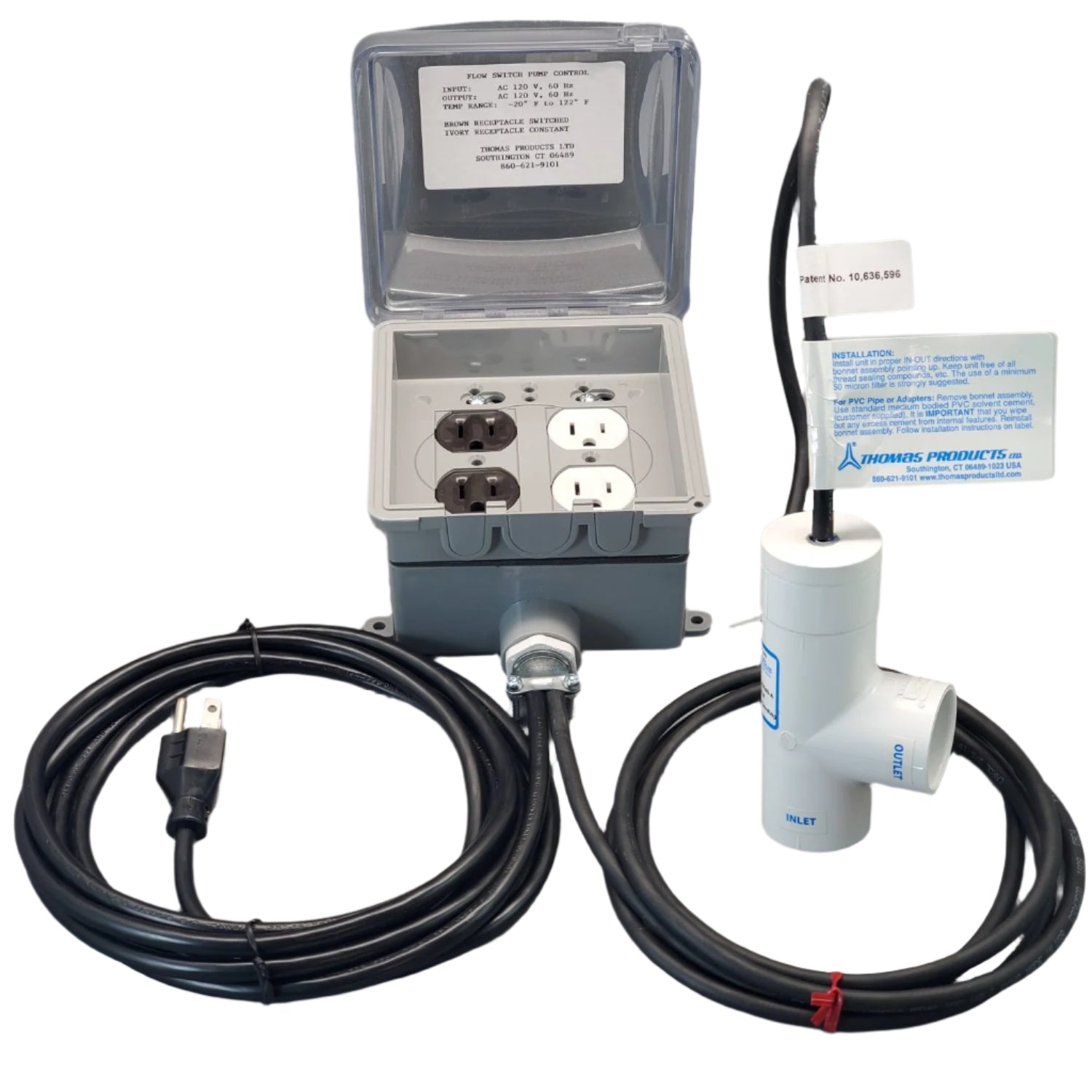

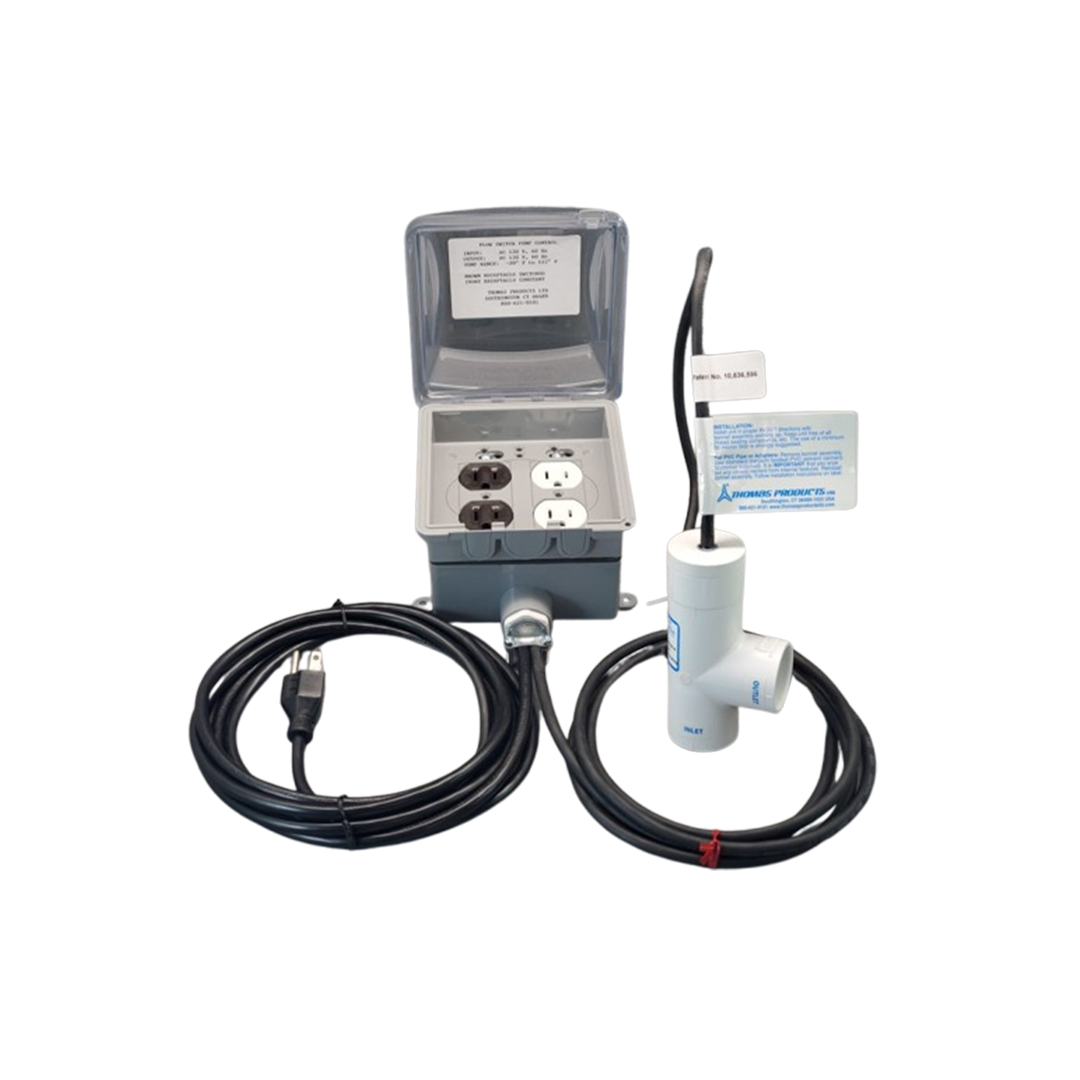

This pump control is an enhanced model of our tried and true model 1801. This model features 4 weather-proof receptacles, the brown outlets are switched by the flow switch while the ivory receptacles remain constant. The benefit with this is that you can still control a chemical injection pump and another switch device, while also having additional constantly powered outlets for things like timers and other circuits that constantly need power.
Features
- Has Water Tight Cap Over Standard Strain Relief.
- 1” Slip Ports / Adapters Available On Back Page.
- Flow Set Points Available To 6.0 GPM.
- Locking Wire For Easy Disassembly For Cleaning.
- Locking Cover To Protect Accidental Unplugging.
- Calibrated @ 0.5 GPM On Increasing Flow.

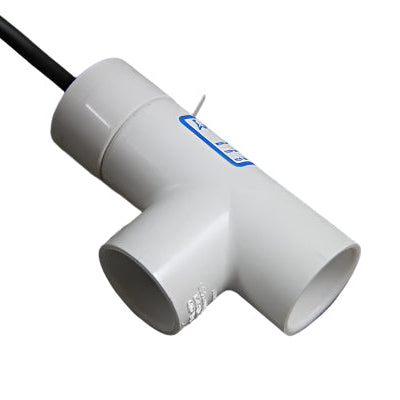

- True-Flow switch design utilizes a SST return spring for any mounting attitude.
- Input 120 VAC / Output 120 VAC 10A 1/2 HP.
-
Weight : 3.5 lbs
Dimensions : 12 × 7 × 8 in
