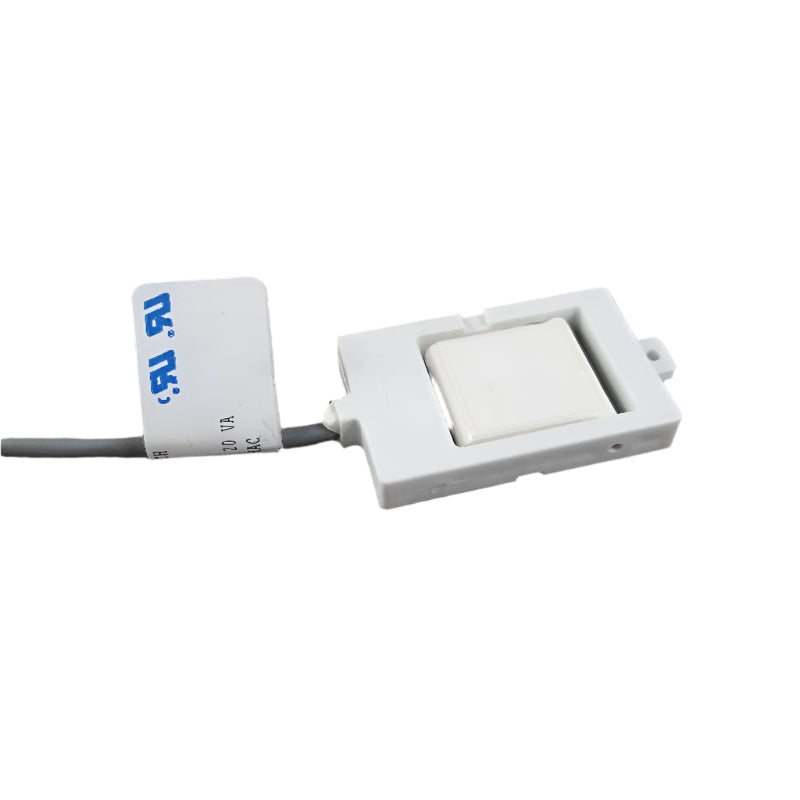

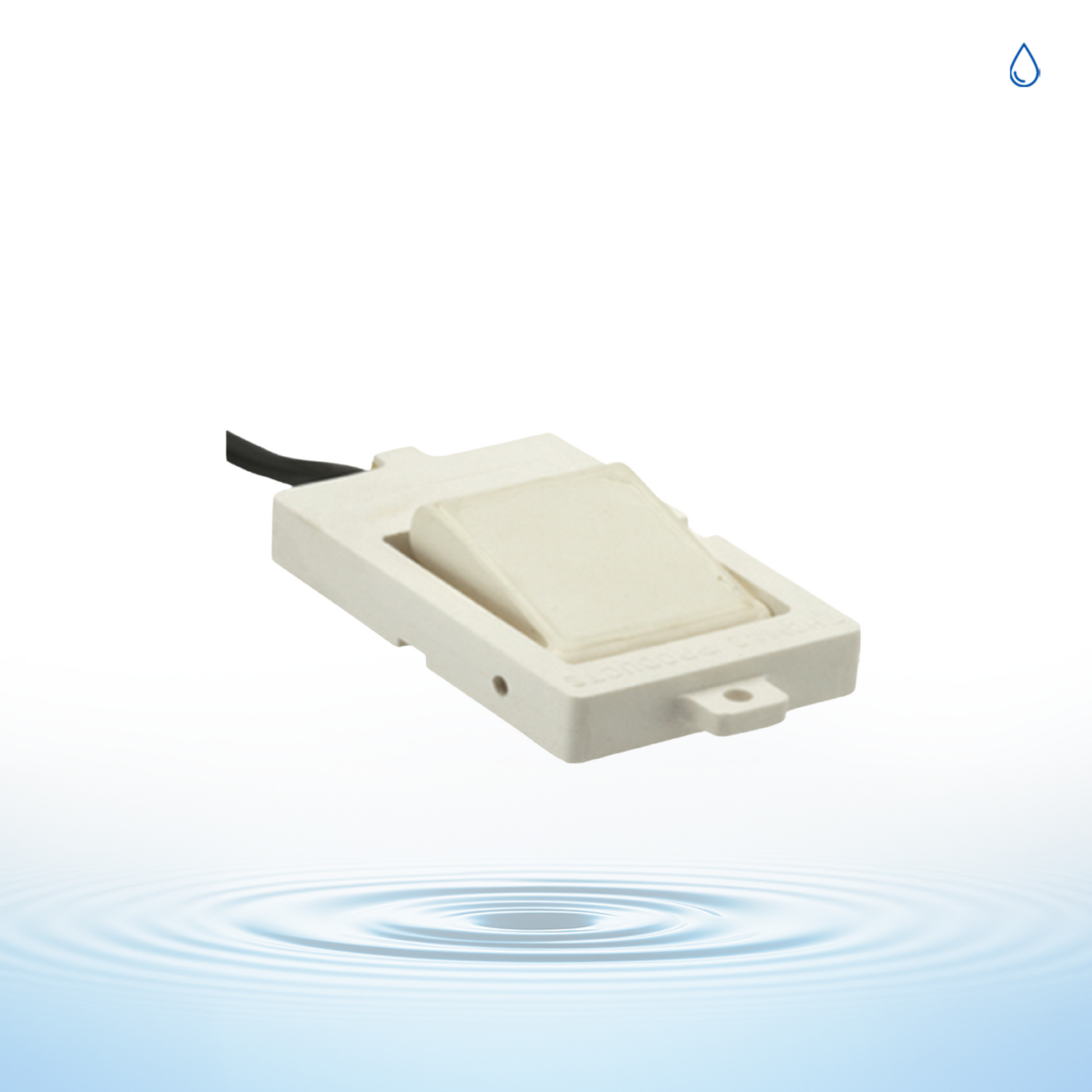

Model 3800, Liquid Level Switch, PVC, SPST 10VA Pilot Duty, -20°F to 140°F
PRODUCT NOTES
- Specific gravity .7 minimum.

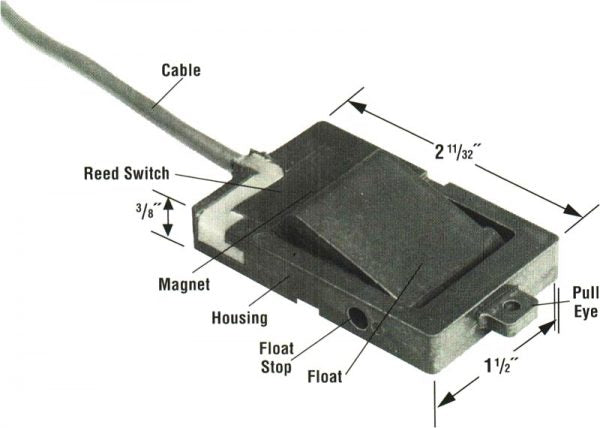

- Operates in 5/8″ envelope. Actuates in approximately 1/4″ of water level.
- Wetted parts: stainless steel, PVC, hysol epoxy, and cunife magnet.
- Use in flammable environments. Should only be used with an intrinsically safe barrier to make the sensor safe not posing a hazard.

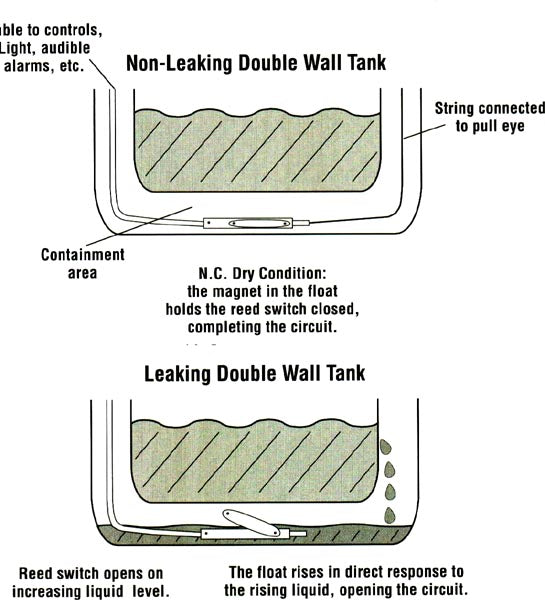

- Model 3800 switch logic is the same N. C. (normally closed) tank dry condition in either side unit is installed.
- Switch logic N.C. (normally closed) tank dry. Switch opens on increasing level.
-
Weight : 1 lbs
Dimensions : 8 × 5 × 3 in
