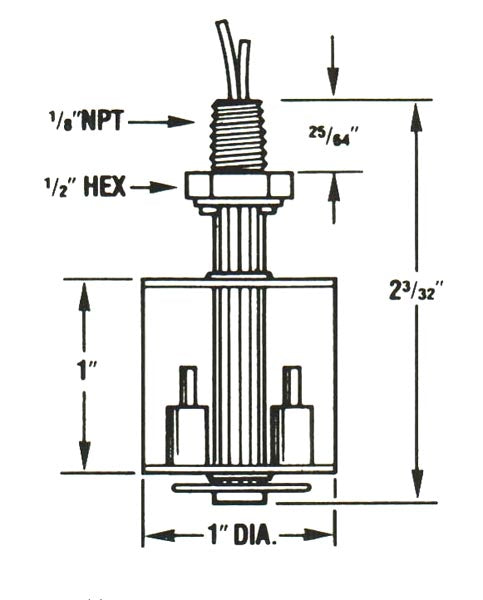

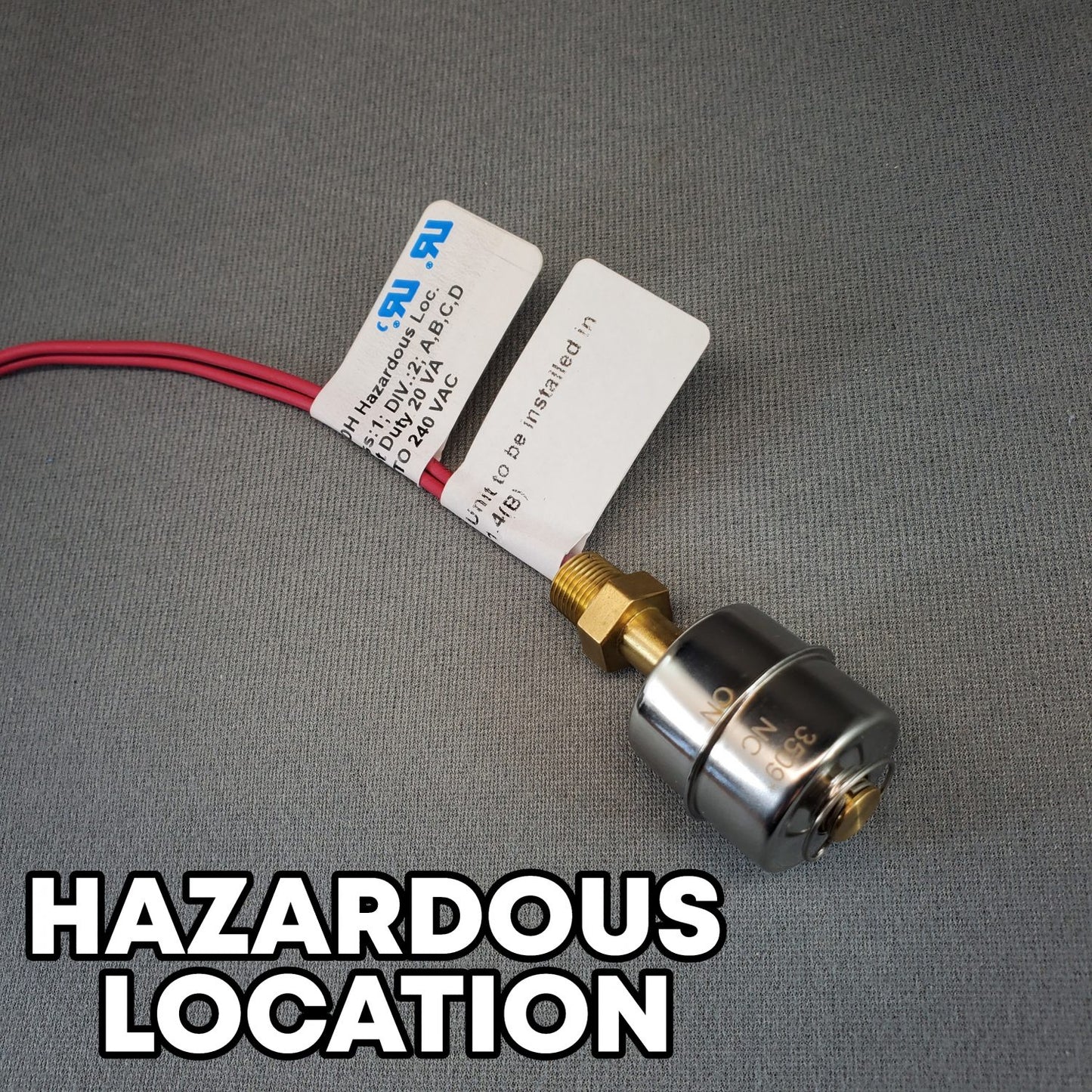

4200 Series Liquid Level Switch Brass 1/8" NPT SPST for Water Oil Diesel Fuel Tanks

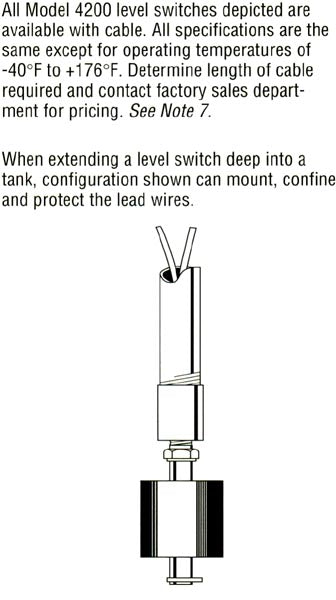

All Model 4200 level switches depicted are available with cable. All specifications are the same except for operating temperatures of -40°F to + 176°F. Determine length of cable required and contact factory sales depart­ment for pricing. See Note 7. When extending a level switch deep into a tank, configuration shown can mount, confine and protect the lead wires.

Standard Operation: All 4200 Series level switches are supplied Normally Open (N.O.) as standard. The switch closes when the liquid level rises and lifts the float, completing the circuit. If a Normally Closed (N.C.) configuration is required, please contact Customer Service when ordering. In many applications, the switch function can also be changed in the field by simply removing and reinstalling the float upside down.

Product Notes

1. Lead wires are available in different lengths, terminated ends or cable. Contact factory.
2. 100 VA SPST reed switch is available non UL. Consult factory.
3. Float specific gravity … .65
4. Float specific gravity … .81
5. Float specific gravity … .85
6. Custom interface floats are available. Consult factory.
7. PVC cable UL 2464 AWG #22 300V 80°C. Customer to specify length. Consult factory for pricing. UL recognized Model No. 4200L.
8. 100 VA SPST and 20 VA SPDT reed switches are available. Consult factory.
9. Relays are available for handling higher loads than allowed. See Accessories section for details.
