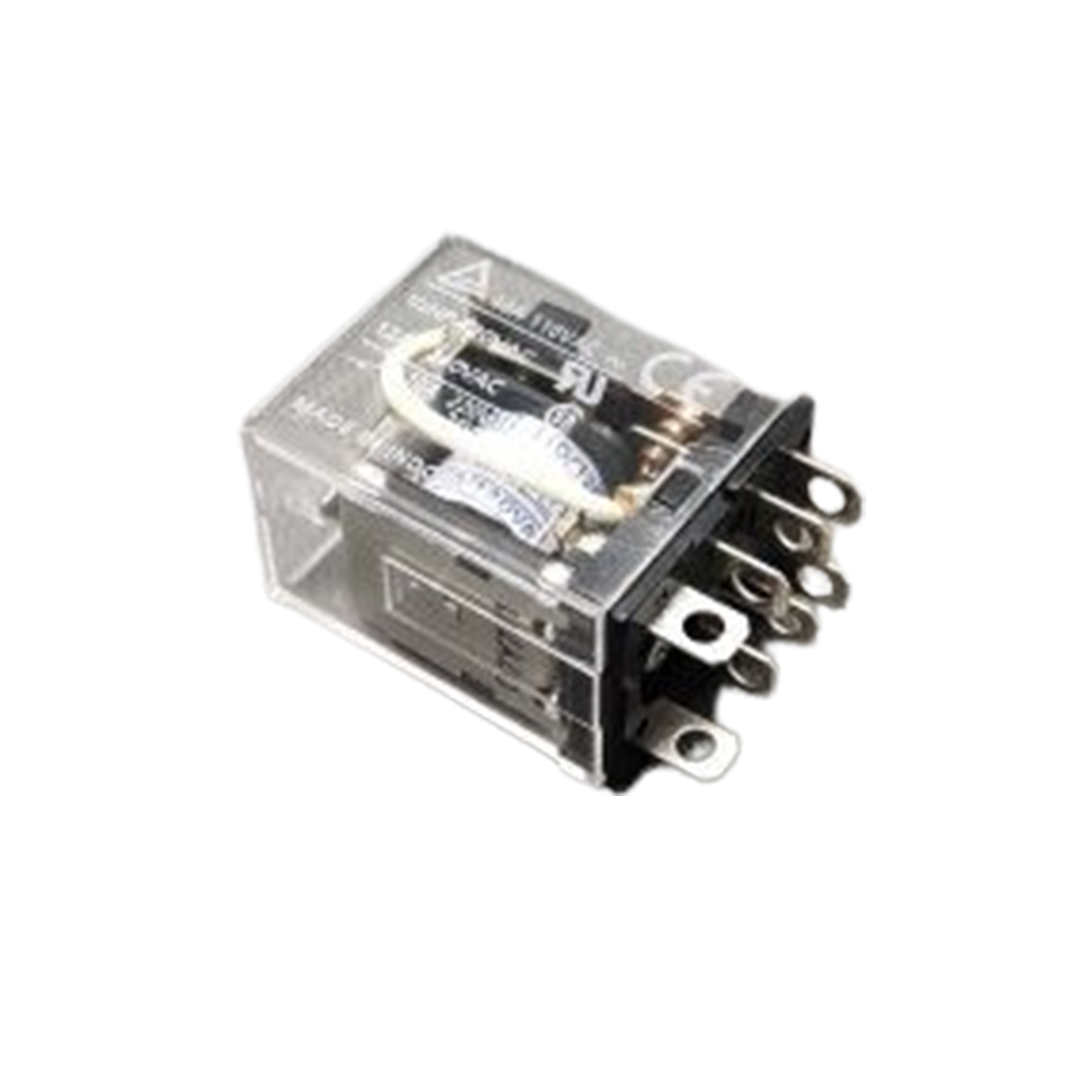

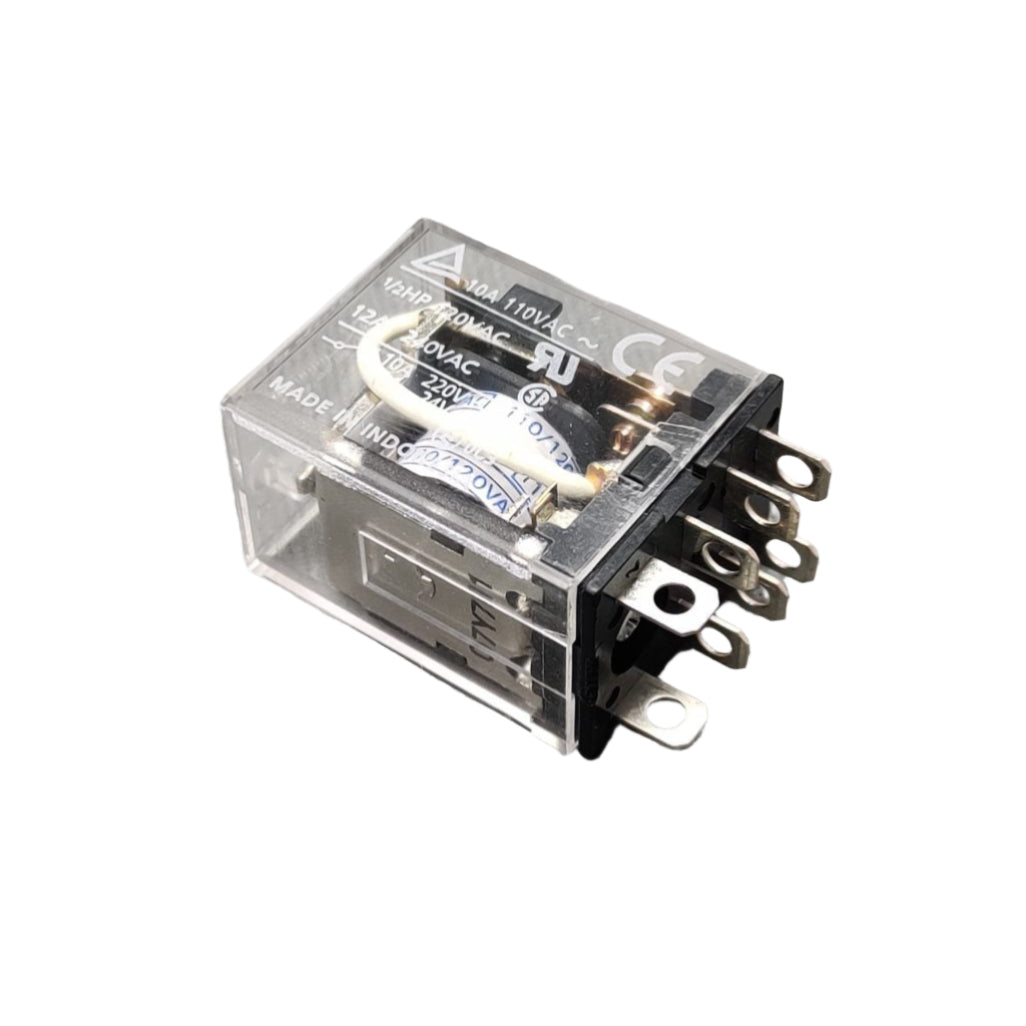

These relays work by having a single set of contacts which are used to actuate the state of the relay. When the relay coil is energized, the electrical of the state switches. When the relay coil is deenergized, the electrical state of the relay resets. Refer to the diagram to see which pins are used to actuate the relay.
-
Weight : 1 lbs
Dimensions : 6 × 5 × 3 in
